English Firmware 1GE 3FE VOICE FTTH ONT Device Similar With Huawei HG8546M

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 5 work days

Brand: JiZhong

Product Description

English Firmware 1GE 3FE VOICE WIFI GPON ONU FTTH ONT Similar With Huawei HG8546M

Data process:

Supporting two-way linear speed data forwarding, support 256 MAC Address Table;

Supporting 802.3 SNAP and Ethernet II package, supporting 802.1P/Q priority definition, IP DSCP field, ACL definition based priority;

Supporting tag identification,modify and add; support protocol message identify and capture;

Supporting ACL rule(supporting MAC/IP/TCP/UDP/ICMP /IGMP /IPv6 format );

Ethernet supporting speed rate, duplex mode self-negotiation as well as manual setting;

Supporting 802.1x certificate, STP /RSTP protocol;

Supporting based on access flow control ; supporting QoS function

Datasheet:

Items	Parameters
PON Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0~4dBm Rx Sensitivity: -27dBm Two direction FEC(Forward Error Correction) authertation: SN/password/LOID(GPON); MAC/Key/LOID(EPON) Optical Fiber: 9/125 single-mode fiber
Ethernet	VLAN Tag/UNTAG Q in Q VLAN MAC address restricion MAC address learning IEEE802.11b/g/n antenna attenuation:2dBi multi SSID
WLAN	IEEE802.11b/g/n antenna attenuation:2dBi multi SSID WPS
Hardware	Shell:Plastic housing Ports:1GE+3FE Weight:0.2kg/pc Indicator:Power/PON/LOS/LAN/WPS/WLAN
QoS	Port-based speed limitation 802.1p Priority SP/WPR/SP+WRR message speed limit
O&M	OMCI/Web UI 802.1ag Ethernet OAM loop detection optical link supervision
Multicast	IGMP v2/v3 snooping MLD v1/v2 snooping downstream VLAN switch/ transparent transmit IGMP/MLD message speed limitation
Security	SPI firewall MAC/IP/URL filter
Operation	PPPOE/DHCP proxy test

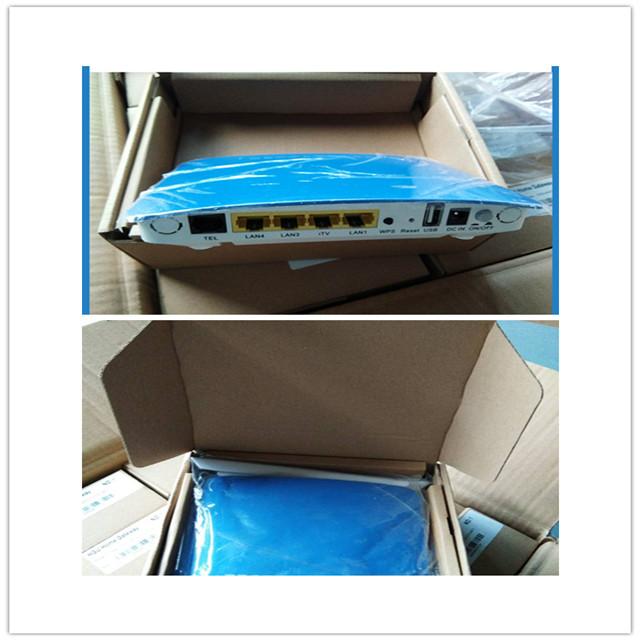

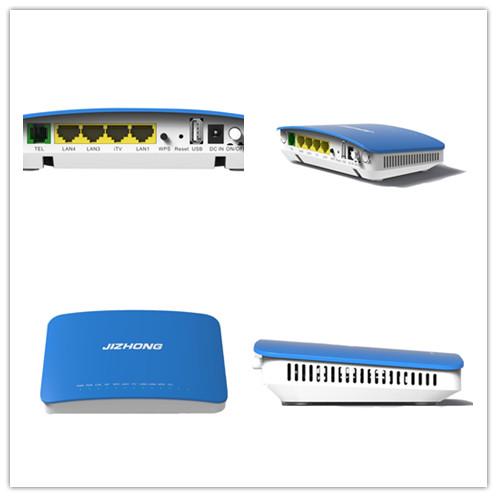

Pictures: Packing:
