12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
5 work days
Brand:
JiZhong
Product Description

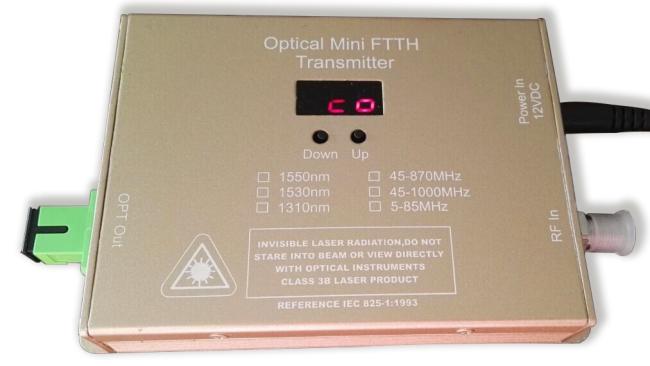

12mW FTTH 1550nm Cable TV CATV RF Fiber Mini Optical Transmitter
Description:
FTTH MINI CATV Optical Transmitter, Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:≥16dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:47~1000MHz,Input Level:72-82dBuV,C/N:≥51dB,Power Input Voltage:DC12V/1A,Dimensions:140*90*26mm.
Technical Parameters:
| Item | Unit | Technical spec. |
| Wavelength | nm | 1310±20 |
| Laser type | DFB laser | |
| Optical modulation type | Direct optical strength modulation | |
| Optical connector type | FC/APC or SC/APC | |
| Frequency range | MHz | 47-862/1000 |
| RF input level | dBuV | 72~82 |
| Flatness in band | dB | ±0.75 |
| RF input resistance | 75 | |
| Input reflection loss | dB | ≥16 |
| Link C/N | dB | ≥ 51 |
| Link C/CSO | dB | ≥ 60 |
| Link C/CTB | dB | ≥ 65 |
| AGC controling range | dB | ±5 |
| MGC controling range | dB | 0~10 |
| Power supply pressure | V | DC12V/1A |
| Power loss | W | ≤ 8 |
| Dimension | mm | 140 x 90 x 26 |
