FTTH Mini Optical Transmitter 1310nm 12mW 1550nm 10mW CATV 4~10mW
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
5 work days
Brand:
JiZhong
Product Description

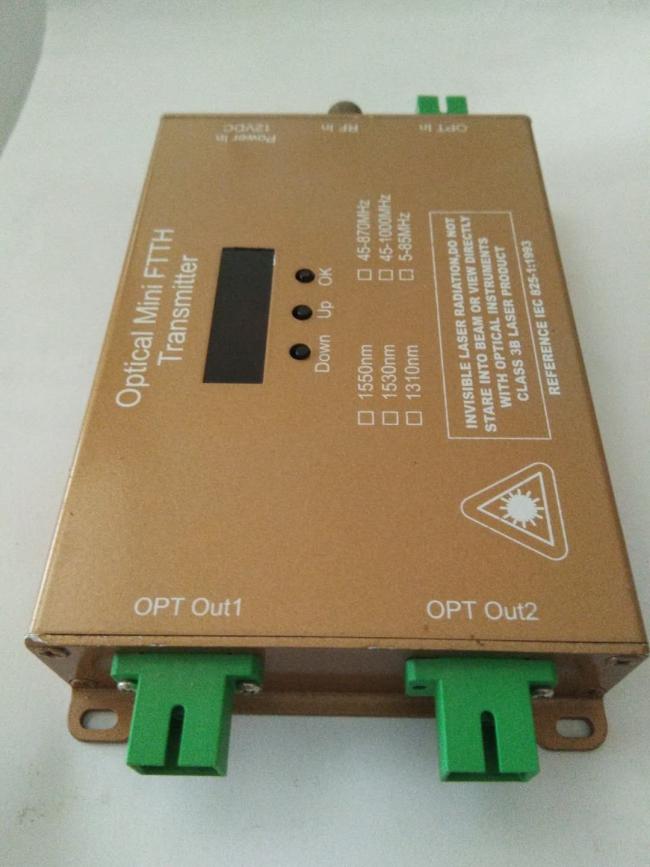

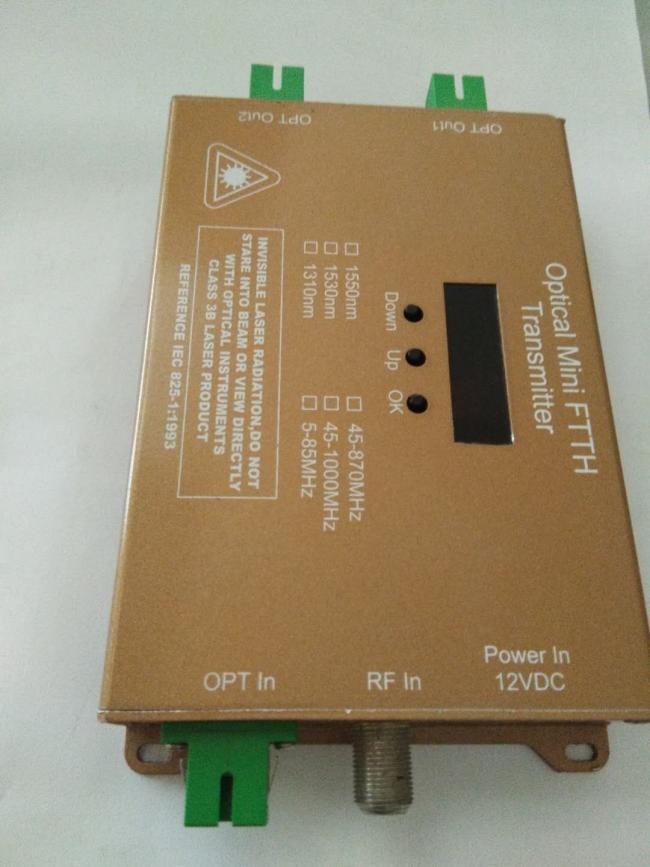

1310nm 12mW 1550nm 10mW CATV 4~10mW FTTH Mini Optical Transmitter
Main Features:
CPU processor matching with automatic monitoring system circuit, which guarantees the stable power output and prolong service life of laser.
Low power consumption design and low working temperature.
47-1000MHz optimized circuit design, customable as per your desired frequency bandwidth for the system.
External power supply adapter,it is convenient to maintain and operate.
Technical parameters:
| Item | Unit | Technical spec. |
| Optical output wavelength | nm | 1310/1550±20 |
| Frequency range | MHz | 47-1000 |
| Laser type | DFB laser | |
| In-band flatness | dB | ±0.75 |
| RF input level | dBµV | 72 ~ 82 |
| Optical connector type | FC/APC or SC/APC | |
| Input reflection loss | dB | ≥16 |
| C/N | dB | ≥ 51 |
| C/CSO | dB | ≥ 60 |
| C/CTB | dB | ≥ 65 |
| AGC controlling range | dB | ±5 |
| MGC controlling range | dB | 0~10 |
| Optical return loss | dB | 45 |
| Power voltage | V | 12V/1A |
| Power consumption | W | ≤ 8 |
| Dimension(L*W*H) | mm | 140*90*26 |
