Product Description
CATV PON DWDM High Power EDFA 1550nm Fiber Optical Amplifier With Pump Laser
Description of high power EDFA:
The EDFA 1550nm Fiber Optical Amplifier EDFA is multi-channel EDFA of high flattening and high stable output. The kernel component of the product is high availability pump laser and high-performance gain flattening filters.
The Fiber Optic Amplifier has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control).
Technical Parameters:
| Parameters | Unit | Index | Remark |
| Operating wavelength | nm | 1535~1565 | |
| Output optical power | dBm | 13~24 | |
| Input optical power | dBm | -10~+10dBm | |
| Gain flatness | dB | ＜±0.3 | |
| Noise figure | dB | 5.0~6.0 | |
| Optical power output stability | dB | ＜±0.1 | |
| Polarization sensitivity | dB | ＜0.2 | |
| Polarization mode dispersion | PS | ＜0.5 | |
| C/N | dB | >52 | |
| C/CTB | dB | >65 | |
| C/CSO | dB | >65 | |
| MER | dB | >36 | |
| BER | dB | ≤1.0E-8 | |
| Optical connector | SC/APC；SC/PC (LC/APC；LC/PC) | ||
| Saturated output power | dBm | Max total power 30~41 | |
| Power supply | VAC | 95~265(detachable power) | |
| Power Supply | VAC | 48(detachable power)optional | |
| Dimension | mm | 483x468x88 |
Network Operation:

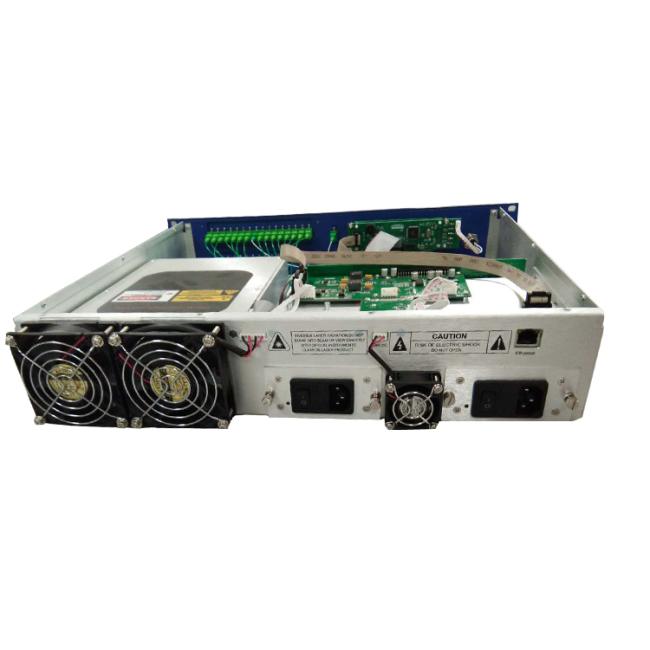

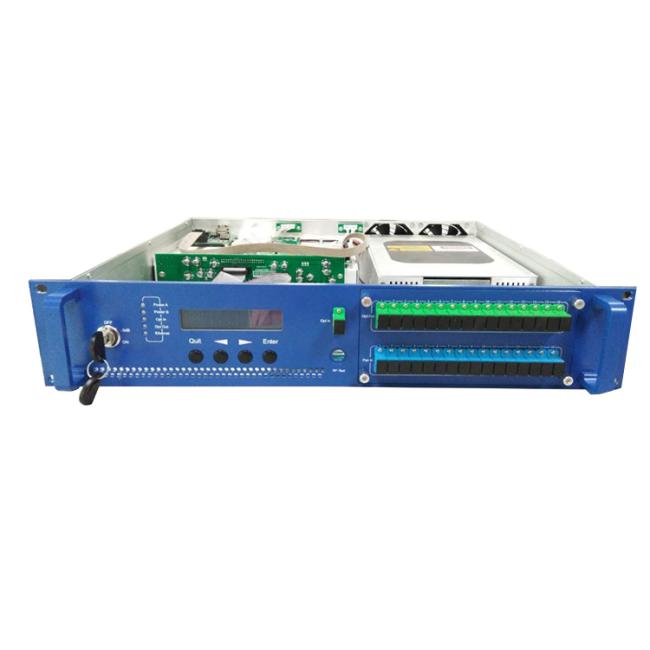

Product Details:
Packing:
