Indoor 1GHz FTTB Catv Optical Node 1200 - 1600nm Wavelength With GaAs Chip OR200

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: Depends

Brand: JIZHONG

Product Description

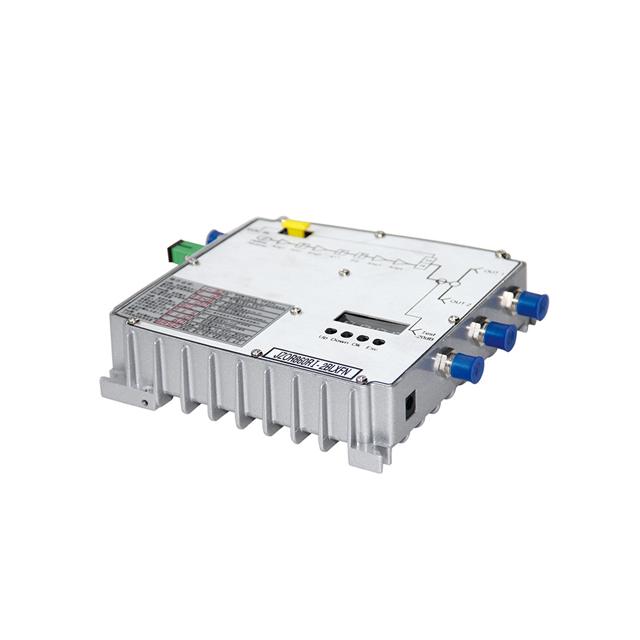

Jizhong Smart CATV Indoor 1GHz FTTB Optical Node with GaAs Chip OR200

MAIN FEATURES

Adopt single chip microcomputer to monitor the mechanical status,digital display key working status.
5-1000MHz optimization circuit design, user use frequency bandwidth according to system customization.
By single chip microcomputer to monitor the status of receiver, digital display key working status, attenuation and the equalizer.Locally,we can adjust and control the device accurately by the button.And remote monitor by network management system.
With High sensitivity PIN O/E converter,high working reliability.Digital display optical power
EOC for option.Network Management support.Sort-II Network Transponder

TECHNICAL SPECIFICATION

Item	Unit	Specification
Product Name	5~1000MHz FTTX FTTB 2 Output Outdoor Optical Node With AGC 104dBuV With SNMP
Forward working bandwidth	MHz	47/87 ~862/ 1000
Optical AGC range	dBm	-8~+2
RF Flatness in Band	dB	±0.75
Output reflection loss	dB	≥16(47~550MHz) / ≥14(550~862MHz/1000MHz)
Link C/N	dB	≥51
Link C/CSO	dB	≥60
Link C/CTB	dB	≥ 65
Output level	dBμV	2 way distribution 104 (O R1000RI-2BLXFN) 2 way distribution 98(OR1000RI-2BLXIIIN)
EOC function		option
Network Management Transponder		II
Power consumption	W	≤16
Dimension	Mm	250170110
