OEM ODM White Color WiFi EPON VOIP ONU 1GE Mini FTTH GPON ONU Modem Mini
OEM ODM White Color WiFi EPON VOIP ONT 1GE Mini FTTH GPON ONT Modem Mini

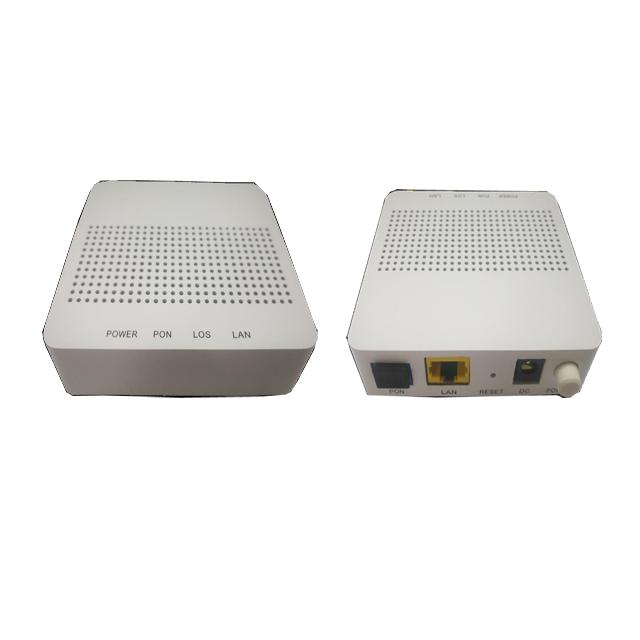

JZ9336B-G
The Description of JZ9336B FTTH ONT:
The JZ9336B-G is an single port SFU Optical Network Terminal (ONT) for home
users and Small Office Home Office (SOHO) users. It implements ultra-broadband
access for home and SOHO users through the GPON technology in a low-cost way.
Compliant with standard OMCI definition, JZ9336B-G GPON ONT is manageable at
remote side and supports the full range FCAPS functions including supervision,
monitoring and maintenance.
Advantages:
The JZ9336B FTTH ONT is delivered with 1*10/100/1000 Base-T interface, supporting:
*Auto-negotiation and MDI/MDIX auto-sensing;
*Built-in layer-2 switch;
*Advanced data features such as VLAN tag manipulation, classification, and filtering;
Applications:
JZ9336B FTTH ONT is applied for home users and small office home office users, deploying ultra-broadband access for home and SoHO users through the GPON Technology in a low cost way.
Technical Index:
| Optical SPEC | Working wavelength | nm | PON:TX1310,RX1490; |
| emitting power | dBm | 1.5 ~ +5(GPON) | |
| receiving sensitivity | dBm | ≥ -27 | |
| Optical fiber connector | / | PON:SC/UPC | |
| Port | The user side Ethernet ports | / | 1GE |
| Other | The power supply | V/A | AV110～255V→DC12V 0.5A |
| Working temperature | ℃ | -5～45 | |
|
|
|||
