802.11 B/G/N Dual Mode 1GE 1FE FTTH GPON EPON XPON ONU WIFI With 1 POTS
802.11 b/g/n Dual Mode 1GE 1FE FTTH GPON EPON XPON ONU WIFI With 1 POTS
Model:JZ9337
Brief introduction:
To deliver triple-play services to the subscriber in fiber -to-the-Home or fiber -to -the-Premises application, the JZ9337 FTTH ONU incoperates interoperability, key customers' specific requirements and cost -effective.
Technical Specification:
| Items | Unit | Parameters | Remark |
| Wavelength | nm | PON: TX1310; RX1490 | |
| TX power | dBm | 1~+4 (GPON) | |
| RX sensitivity | dBm | >=-27 | |
| Optical fiber connector | / |
PON: SC/UPC(SC/APC for option) |
|
| Ethernet ports | / | 1GE+3FE | |
| USB2.0 | / | 1 | |
| POTS | / | 1 | |
| 2.4G WiFi | / | 300Mbps | |
| Power supply | V/A | DC12V 1A |
Main Features:
* Auto-negotiation and MDI/MDIX Auto-sensing.
* Built-in layer-2 switch.
* Advanced data features such as VLAN tag manipulation, Classification and filtering.
Advantages:
*The JZ9337 FTTH ONU supports video contents delivered in the form of data (by multicast
or unicast);
*The JZ9337 FTTH ONU can optionally be delivered with 1 POTS interface port for carrier-
grade voice service;
* WiFi: 2*2 300Mbps; 802.11 b/g/n; Internal Antenna;
* Power Supply:+12V 1A(feed via external AC/DC adapter); 2-PIN power adaptor input; Dying Gasp suppor
* PON interface:1.244 Gbps Burst Mode Upstream Transmitter; 2.488 Gbps Downstream Receiver;
*AES-128 Decryption with key generation and switch;
*Ethernet interface:Ethernet port auto negotiation or manual configuration;

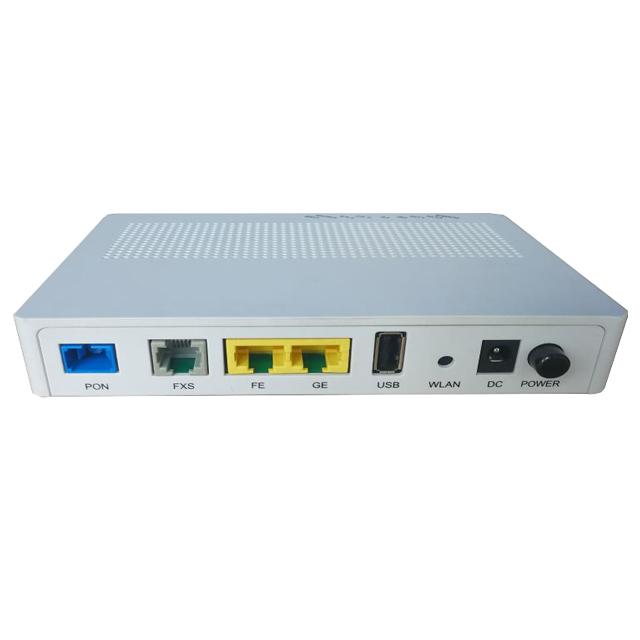

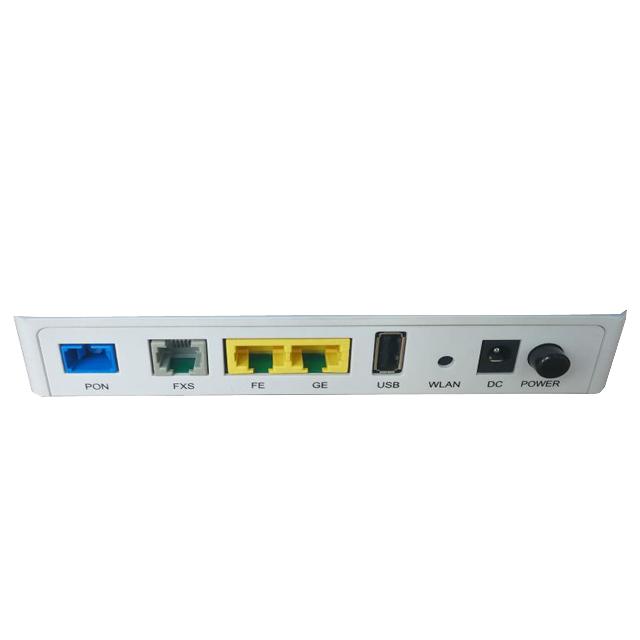

Picture shows:
