GPON Terminal Device 2GE 1 Pots 1 Telephone 1 PON Port FTTH GPON EPON ONU Working With Multiple Brand OLT

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 5 work days
Brand: JiZhong
Product Description

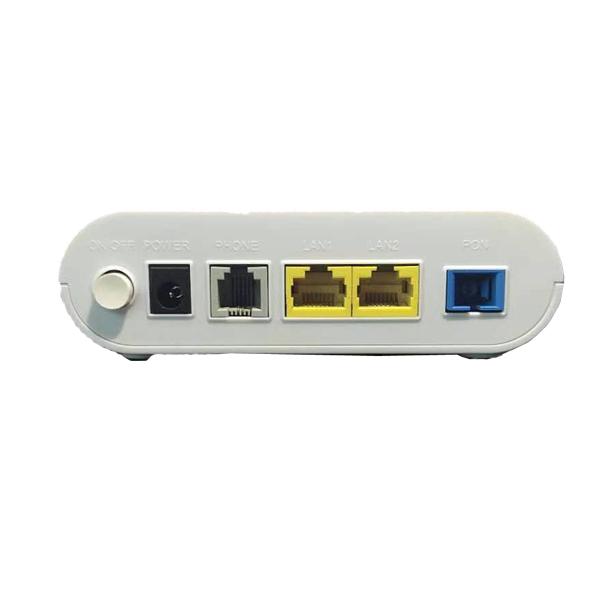

 2GE 1POTS  1PON Port GPON EPON ONU

JZ-G8011U-H



Product introduction:

JZ-G8011U-H is GPON terminal device,work with OLT,it can provide Internet,VOIP, It is based on mature and stable cost-effective GPON technology,providing 1 PON port, 2 10/1000M,1 VOIP port. Adopting single fiber WDN technology(downlink 1490nm,uplink 1310nm),requiring only one fiber to connect with OLT,the longest transmitting distance can be 40KM, supporting power down report function,support local WEB management function.



Technical Parameters:



Items Parameters
internet access 2pcs, 10/100/1000M self-adaption
Optical port:

 1pcs, SC/PC port

Telephone port:

 1pcs, RJ11 telephone port

external power :

12V/1.5A

CPU:

MAC built-in 800Mhz, ARM processor

FLASH:

 NAND FLASH 1Gbit

DDR:

1Gbit

SLIC:

 Le9641

Product size(LXWXH):

163X125X50 mm

storage temperature humidity:

-10°C—55°C
5%—95% non-condensing

Working temperature humidity:

-10°C50°C
