MiNi Size Bridge Mode GEPON FTTH ONT With 2GE VOIP Interface Working With Multiple OLT
2GE 1VOIP 1PON GPON ONT
JZ-G8011U-H
Product Description:

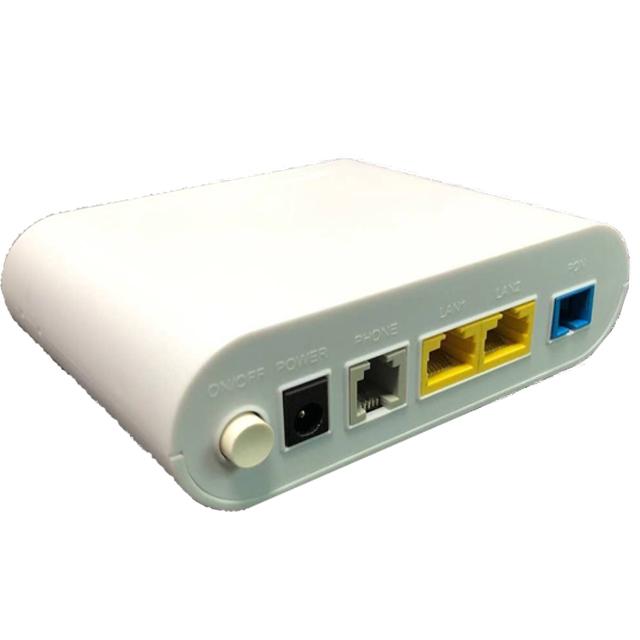

JZ-G8011U-H GPON ONT is GPON terminal device which works with OLT, it can provide internet, VOIP, it is based on mature and stable, cosr-effective GPON technology, providing 1 PON port, 2 10/1000M, 1 VOIP port, adopting single fiber WDN technology (downlink 1490nm, uplink 1310nm), require only one fiber to connect with OLT, the longest transmitting distance can be 40KM, support power down report function, support local WEB management function.
Product features:
1)HGU ONU product modality,support bridge and NAT mode.
2)BOB product process
3)802.11b/g/n wireless access
4)Provide VOIP port,support connecting normal telephone
5)12V/1.5A external power
Technical parameters:
| Port: | |
| Power | External power 12V/1.5A |
| Internet access | 2pcs, support 10/100/1000M self-adaption |
| Optical port | 1pcs, SC/PC port |
| Telephone port | 1pcs, RJ11 telephone port |
| Hardware key equipment specification: | |
| CPU | MAC built-in 800MHz ARM processor |
| MAC | ZX297100A |
| Flash: | Nand Flash 1Gbit |
| DDR: | 1Gbit |
| SLIC | Le9641 |
| Product size | |
| Size(LXWXH): | 163x125x50mm |
| Reliability and environmental suitability: | |
| Storage temperature humidity: |
-10°C—55°C 5%—95% non-condensing |
| Working temperature humidity: |
-10°C—50°C 5%—95% non-condensing |
|
|
|
