802.11n WIFI 1GE 1FE CATV ONT 2T2R 5dBi VOIP FTTH ONT Supported With Multiple SSID
802.11n WIFI 1GE 1FE CATV ONT 2T2R 5dBi VOIP FTTH ONT Supported With Multiple SSID
Model NO:JZ-CX1112R002
Product Overview:
1G1F+WIFI+CATV+POTs is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
1G1F+WIFI+CATV+POTs are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
1G1F+WIFI+CATV+POTs adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
1G1F+WIFI+CATV+POTs are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
1G1F+WIFI+CATV+POTs are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1G1F+WIFI+CATV+POTs are designed by Realtek chipset 9602C.
Main Feature:
Supports Dual Mode (can access GPON/EPON OLT).
Supports GPON G.984/G.988 standards and IEEE802.3ah.
Support CATV interface for Video Service and remote control by Major OLT
Support SIP Protocol for VoIP Service
Integrated line testing compliant with GR-909 on POTS
Support 802.11n WIFI (2x2 MIMO) function
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT(HW, ZTE, FiberHome...)
Specifications:
| Technical Item | Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
| CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED | 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |

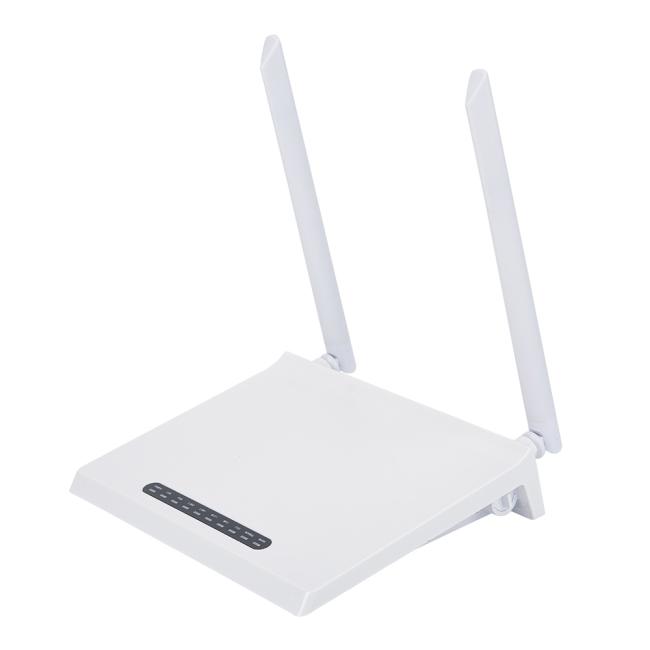

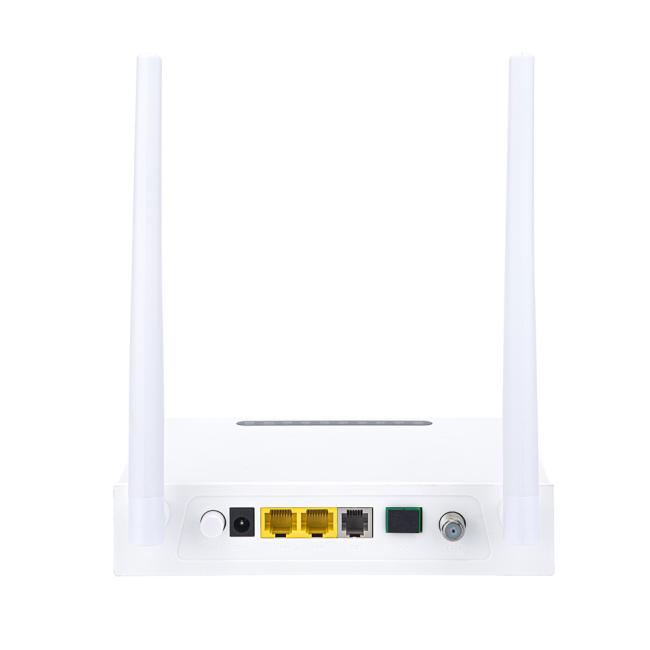

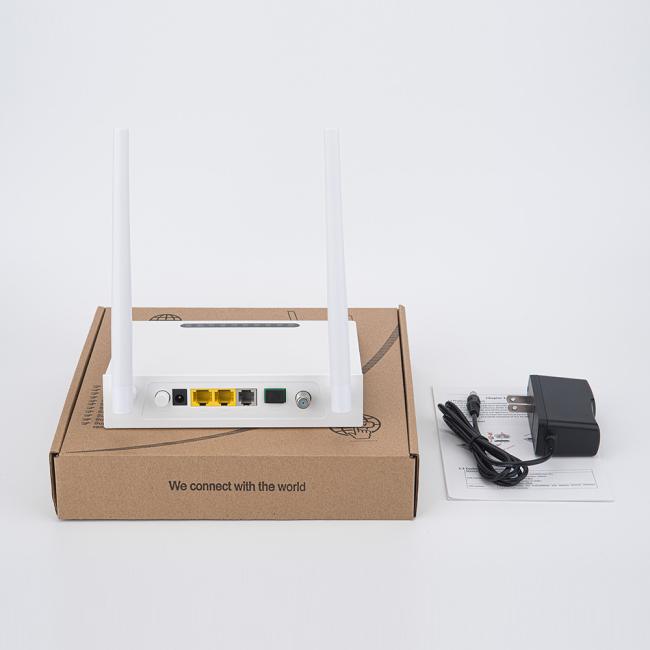

Appearance:

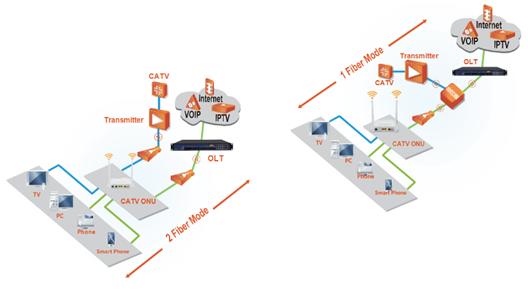

Application
Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.
