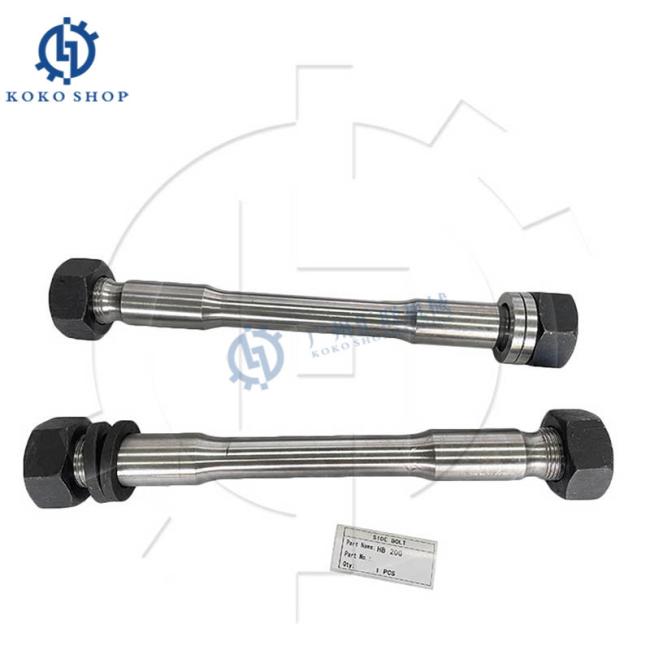

Hydraulic Breaker Hammer Bode Frame Side Bolt For Furukawa Repair Parts For Hb10g Hb20g Hb30g
Hydraulic Breaker Hammer Bode Frame Side Bolt For Furukawa Repair Parts For Hb10g Hb20g Hb30g
| Product Name | Side Bolt |
| AppliCATEEEEEEEEEEEEEEion | Hydraulic Breaker Hammer |
| Size | Standard Size and Custom Size |
| Model | Hb10g Hb20g Hb30g |
| Material | Crmo |
| Warranty | 3-6 months |
| Core Components | Chisel, Cylinder, Piston, Seal Kit, Diaphragm |
We supply the parts of Hydraulic Breaker, such as cylinder, front head, back head, piston, chisel, accumulator, seal kits, side bolts, through bolts, etc.
Spare parts for Hydraulic breaker:
1) Reliable quality
2) Very competitive price
3) Long time service
4) Prompt shipment
SpecifiCATEEEEEEEEEEEEion of hydraulic breaker through bolt &side bolt
| Hydraulic breaker through bolt | hydraulic breaker side bolt | ||
| FURUKAWA HB20G | 42X955MM | FURUKAWA HB20G | 48X447MM |
| FURUKAWA F22 | 42X960MM | FURUKAWA F22 | |
| SOOSAN SB81N | 46X1015MM | SOOSAN SB81 | |
| SOOSAN SB81 | 52X1050MM | GB GB8AT | |
| GB GB8AT | 44X990MM | GBGB220E | |
| GBGB220E | 42X967MM | TOKU TNB150 | 39X428 MM |
| TOKU TNB150 | 42X1012MM | TEISAKU TR210 | 42X415 MM |
| TEISAKU TR210 | 40X967MM | EVERDIGM EH322 | 42X420 MM |
| EVERDIGM EH322 | 42X1160 MM | TOYO THBB1401 | 42X380 MM |
| TOYO THBB1401 | 39X1000 MM | KWANGLIM SG2100 | 42X423 MM |
| KWANGLIM SG2100 | 40X1008 MM | MKB MKB1500 | 42X420 MM |
| MKB MKB1500 | 39X1030 MM | DAEMO DMB2200 | 42X405 MM |
| DAE MO DMB2200 | 42X1090 MM | SOOSAN SB81N | 48X421 MM |
| SOOSAN SB100 | 56X1125 MM | SOOSAN SB100 | 48X 466 MM |
| FURUKAWA HB30G | 48X1050 MM | FURUKAWA HB30G | 48X510 MM |
| SOOSAN SB40 | 27X575 MM | SOOSAN SB40 | 27X230 MM |
| GB GB2T | 27X585 MM | GB GB2T | 30X260 MM |
| GB 5T | 39X885 MM | GB GB5T | 30X 330 MM |
| SOOSAN SB50 | 39X885 MM | SOOSAN SB50 | 36X312 MM |
| SOOSAN SB121 | 56X1160 MM | SOOSAN SB50 | 36X330 MM |

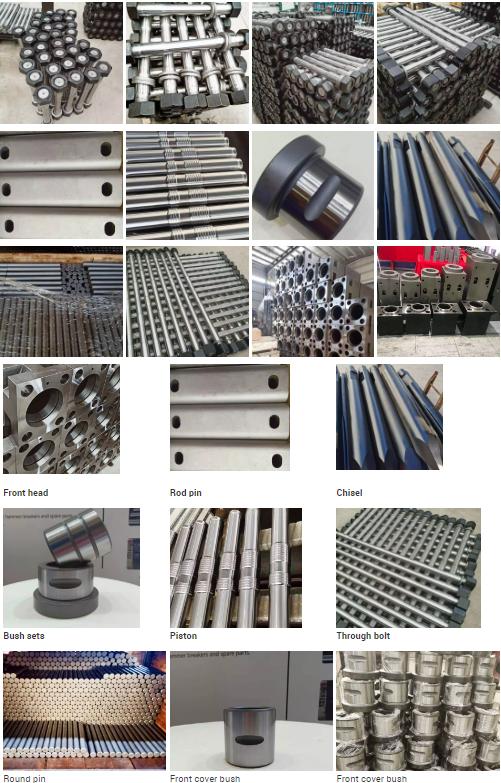

Hydraulic Breaker Spare Parts
| Back Head | Control Valve |
| Gas Charging Kit | Damper Cushion |
| Thrust Bushing | Lock Pin |
| Piston Ring | Moil Chisel |
| Through Bolt | Side Bolt |
| Front Head | Flat Chisel |
| Breaker Cylinder | Rubber Pad |
| Seal Kit | Piston |
| Diaphragm | Lowter Bushing |
| Chisel | Through Bolt |
| Upper Bushing | Accumulator |
| V-Wedge Chisel | Universal Chisel |
| Charging Valve | Gas Bottle |
| H-Wedge Chisel | Rod Pin |
| B050-7056 | Lower Damper | B052-5013 | Stop Pin |
| B060-5004 | Stop Pin | B052-5012 | Stop Pin |
| B060-5003 | Stop Pin | B054-5002 | Chisel Pin |
| B060-5009 | Chisel Pin | B054-0601 | Seal Kit |
| B060-0601 | Seal Kit | B054-1002 | Piston |
| B060-1002 | Piston | B050-6004 | Through Bolt |
| B060-6004 | Nut | B050-6002 | Washer |
| B060-5002 | Front Bush | B052-5011 | Front Bush |
| B060-5003 | Chisel Bush | B052-5003 | Chisel Bush |
| B060-5008 | Front Head | B054-5001 | Front Head |
| B060-6002 | Through Bolt | B050-6001 | Nut |
| B133-5005 | Stop Pin | B050-7055 | Buffer side |
| B133-5004 | Chisel Pin | B200-5007 | Chisel Pin |
| B134-0601 | Seal Kit | B200-0601 | Seal Kit |
| B134-1003 | Piston | B200-1003 | Piston |
| B130-6004 | Through Bolt | B200-6001 | Through Bolt |
| B130-6002 | Washer | B200-5004 | Front Bush |
| B133-5002 | Front Bush | B200-5003 | Chisel Bush |
| B133-5001 | Front Head | B222-5005 | Stop Pin |
| B132-7077 | Buffer side | B250-5002 | Chisel Pin |
| B200-5006 | Stop Pin | B250-0605 | Seal Kit |
| B200-5007 | Chisel Pin | B250-1004 | Piston |
| B133-5003 | Chisel Bush | B200-5002 | Thrust Ring |
| B132-5004 | Thrust Ring | B200-5001 | Front Head |
Company Profile
1. We are manufacturers and product direct sales.
2. More than 30 years of industry experience.
3. Professional production technology, product good quality and Low price.
4. Fast delivery and Support OEM/ODM order.
5. Large Stock, we have all brand of spare parts
Our company supply parts for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush
rod pin, through bolts, side bolts, control valve, front head, cylinder, back head, accumulator, charger kit, gas bottle
shock absorber, ect.
