SB50 SB60 SB70 SB81 Rubber Diaphragm For Soosan Hydraulic Rock Breaker Hammer
Hydraulic Rock Breaker Hammer Accumulator Rubber Diaphragm
The Rubber Diaphragm is an important part inside the hydraulic breaker accumulator, mainly used to isolate hydraulic oil and nitrogen.
We are professional and experienced manufacturer of hydraulic breaker hammers, hydraulic breaker hammer pipelines and their related spare parts. The products that we can supply are chisel, seal kits, diaphragm, piston, front head, back head, cylinder, front cover, ring bush, thrust bush, rod pin, through bolt, side bolt, bracket, accumulator, valve, seal retainer etc..
SB50 SB60 SB70 SB81 Rubber Diaphragm for Soosan Hydraulic Rock Breaker Hammer
| Product Name | Hydraulic breaker diaphram |
| Material | Rubber |
| Size | as customer's require |
| MOQ | no limited |
| Warranty | carton |
| Delivery time | 2-7 days after receive payment |
| Payment term | T/T, L/C |
| Packing | carton |
More Soosan Hammer Models We Can Supply
| SB10 | SB20 | SB30 | SB40 | SB50 | SB60 | SB60TR-P | SB70 | SB70TR-P |
| SB81N | SB81 | SB81TR-P | SB81A | SB85 | SB121 | SB121TR-P | SB130 | SB130TR-P |
| SB140 | SB140TR-P | SB147 | SU+85 | SB85 | SU+125 | SB125 | SB151 | SB151TR-P |
| SB10TS-P | SB20TS-P | SB40TS-P | SB43TS-P | SB60TS-P | SB70TS-P | SB81TS-P | SB100TS-P | SB121TS-P |
| SB130TS-P | SB140TS-P | SB151TS-P | SQ10 | SQ20 | SQ30 | SQ35 | SQ40 | SQ43 |
| SQ45 | SQ50 | SQ60 | SQ70 | SQ80 | SQ100 | SQ120 | SQ130 | SQ140 |
| SQ150 | SQ181 | ET200 | ET300 | SB150 | SB157 |
Product Parameter
| PART NAME | SIZE SPECIFICATEEEEEEEEEEEEION | |
| DIAPHRAGM | F-6=F-3=FURUKAWA 300 | 110 * 18 |
| DIAPHRAGM | HB-3G/5G | 100 * 17 |
| DIAPHRAGM | HB-10G/F12 | 140*40 |
| DIAPHRAGM | HB-15G | 150 * 40 |
| DIAPHRAGM | HB-20G | 170 * 35 |
| DIAPHRAGM | HB-30G | 190 * 40 |
| DIAPHRAGM | HB-40G | 210 * 48 |
| DIAPHRAGM | HB-200 | 135 * 23 |
| DIAPHRAGM | HB-700 | 165 * 23 |
| DIAPHRAGM | HB-1200 / 1500 | 230 * 20 |
| DIAPHRAGM | SB-120/121/130 | 192 * 40 |
| DIAPHRAGM | SB-150/SB-151 | 205 * 37 |
| DIAPHRAGM | HM-110/HM-550 | 112 * 16 |
| DIAPHRAGM | MKB-1300/HM-901 | 140 * 60 |
| DIAPHRAGM | HM-600 / 800 / 901 | 140 * 60 |
| DIAPHRAGM | HM960/HM-1300 | 185 * 50 |
| DIAPHRAGM | HM-1500 / KRUPP-1000 / HM720 | 170 * 20 |
| DIAPHRAGM | UB-11 / TOKU-14/TNB13 | 144 * 65 |
| DIAPHRAGM | OUB 312 / UB-1600 | 170 * 70 |
| DIAPHRAGM | OUB 316 / 318 / UB 2500/KTB2500 | 200 * 90 |
| DIAPHRAGM | UB-5/TNB13A | 138 * 68 |
| DIAPHRAGM | UB-11-2 | 150 * 77 |
| DIAPHRAGM | RAMMER S-26 HIGH / D-50 | 95 * 20 |
| DIAPHRAGM | RAMMER S-25 HIGH / D-50 | 110*22 |
| DIAPHRAGM | RAMMER S-26 LOW / D-50 | 193 * 30 |
| DIAPHRAGM | THBB-1400(7624-10-0230)/THBB800 | 157 * 70 |
| DIAPHRAGM | THBB1600 | 168*80 |
| DIAPHRAGM | TOYO2000 | |
| DIAPHRAGM | FURUKAWA 300/HD-300,500 | 110 * 18 |
| DIAPHRAGM | LM-500/YH-65/BRP130 | 115 * 21 |
| DIAPHRAGM | YH-45=CDH700=YH-50=CDH712 | 101 * 21 |
| DIAPHRAGM | TR210 | 165*40 |
We can supply diaphragms for the following excavator hydraulic hammers
| B30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,SB100,SB121,SB130,SB151,etc |
| HB10G,HB15G,HB20G,HB30G,HB40G,HB50G,F1,F2,F3,F4,F5,F6,F9,F12,F19,F22,F27,F35,F45etc |
| MB700,MB750,MB800,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB2500,HB3000,HB3600,HB4200,etc |
| BRH125,BRH250,BRH501,BRH625,SC12,BRV32,BRV43,etc |
| SAGA20,SAGA180,SAGA200,SAGA210,SAGA300,MS550,MS600,MS700,etc |
| HM900,HM901,HM902,HM950,HM960,etc |
| S23,S24,S25,S26,E63,E64,E66,E68,G90,G100,etc |
| MES2500,MES3000,MES3500,MES4000,etc |
| TNB 5E6E7E8E10E,TNB150151,TNB310,THBB301,THBB401,THBB801, |
| THBB1400,THBB2000/OUB310,OUB312,OUB316,OUB318,UB11/H7X,H10X, |
| H10XB,H12X,H16X,H20X,E210,E212,etc |
| B140,B210,B230,B300,B360,B450/MKB1400,MKB1500,MKB1600,MKB1700,etc |
| RHB305,RHB313,RHB320,RHB321,RHB323,RHB324,RHB325,RHB326,etc |
| BLT80-1,BLT80-2,BLT81,BLT100/EDT2000,EDT2200,EDT3000,EDT3200,EDT3500,et |
Diaphragm Paratemer

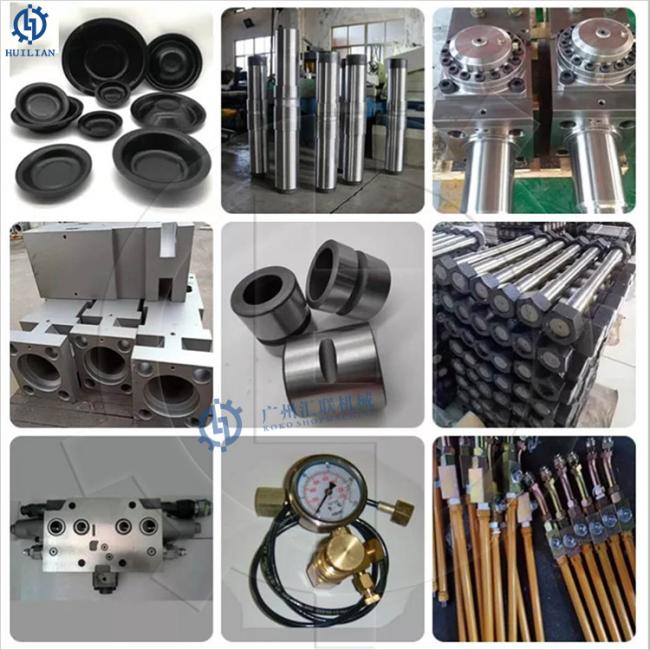

We Can Provide Following Hydraulic Breaker Parts (more than these)
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
Company Profile
Guangzhou Huilian Machine Equipment Co., Ltd. is a professional supplier for hydraulic breaker parts and hydraulic seal kits, we specialize in this field over 10 years, with the strength of OEM, good quality and pretty competitive price.
And we have hydraulic breaker seal kits for CATEEEEEEEEEEEE, EDT, JCB, NPK, MSB, Atla-copco, Soosan, Furuwawka, Daemo, Krupp, Fine, Toku, Toyo, Okada, Beilite, Everdigm, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo, Komatsu...and so on.
