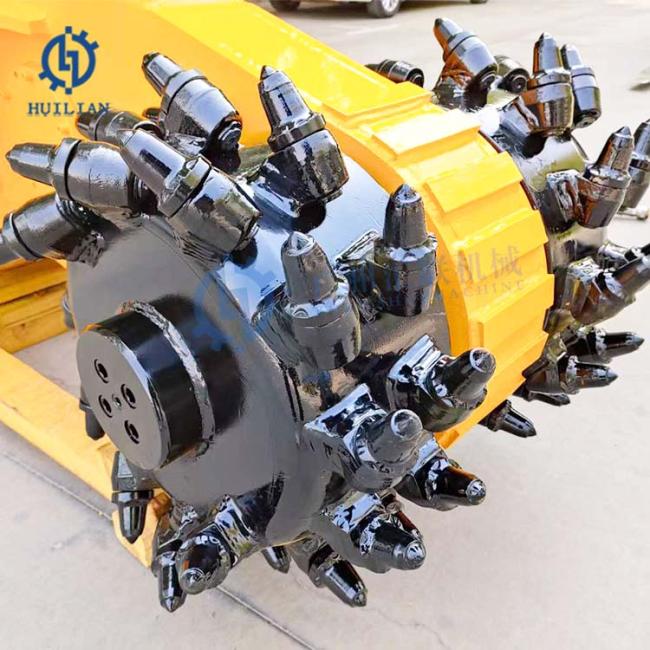

DG200XWJ-H Excavator Rock Drum Cutting Machine Rotary Drum Cutters For Excavator
Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field
AppliCATEEEEEEEEEEion
1. Rock or concrete wall and surface analysis, trench digging, soft rock and frozen soil excavation and demolition.
2. Excavation of tunnels, ditches, municipal pipelines.
3. Road surface crushing, mining, rock and frozen soil excavation.
4. Opencast coal mine excavation, surface creation, steel industry, forestry and other construction fields.
DG200XWJ-H Excavator Rock Drum Cutting Machine Rotary Drum Cutters for Excavator
| Model | DG200XWJ-H |
| Output shaft speed/RPM | 75rpm |
| greatest pressure/Bar | 25mpa |
| Output torque/Nm | 10500N.m |
| Maximum pressure/Kw | 80Kw |
| Number of cutter heads | 60PCS |
| Weight/Kg | 1384kg |
| Length/width/height(mm) | 1612*881*717 |
| Suitable excavator(tons) | 15-25tons |
| Contact number | 86 159 1872 1854 |
Other Models Drum Cutting SpecifiCATEEEEEEEEEEion
| Model | RDC-5RW | RDC-10RW | RDC-15RW | RDC-20RW | RDC-30RW |
| Maximum pressure/Kw | 22 | 29 | 45 | 90 | 110 |
| Oil/LPM | 65 | 112.5 | 132 | 320 | 460 |
| Flow range/LPM | 40 | 60 | 120 | 220~320 | 320 |
| greatest pressure/Bar | 400 | 400 | 400 | 450 | 450 |
| Output torque/Nm | 1875 | 3570 | 6320 | 17840 | 21376 |
| Output shaft speed/RPM | 100 | 80 | 95 | 78 | 76 |
| Weight/Kg | 215 | 381 | 595 | 1370 | 1400 |
| Number of cutter heads | 56 | 56 | 64 | 64 | 60 |
| Carrier/T | 2.5-6 | 45154 | 45278 | 18-30 | 25-40 |
| Model | RDC-5RD | RDC-10RD | RDC-20RD |
| Maximum pressure/Kw | 25 | 50 | 80 |
| Oil/LPM | 85 | 210 | 265 |
| Flow range/LPM | 40-70 | 100-150 | 110-170 |
| greatest pressure/Bar | 205 | 310 | 380 |
| Output torque/Nm | 2200 | 10272 | 14272 |
| Output shaft speed/RPM | 95 | 80 | 65 |
| Weight/Kg | 210 | 750 | 750 |
| Number of cutter heads | 28 | 36 | 42 |
| Carrier/T | 2.5-6 | 45153 | 18-30 |
We can provide following excavator parts
| 1) Undercarriage spare parts: Track shoe, Track Link, Bolt, Track roller, Carrier Roller, Sprocket, Front Idler, Idler Cushion etc |
| 2) Engine spare parts:Engine,Cylinder Head,Cylinder Block,Turbocharger,Piston, Piston Ring, Metal, Crankshaft, Oil Pump,Fuel injection Pump, Water Pump, Alternator, Starting Motor etc |
| 3) Hydraulic spare parts: Main Valve, Main Pump, Solenoid Valve, Boom/Arm/Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor etc |
| 4) Operator's Cab spare parts: Cab, Monitor, Controller, Engine Controller, Wiring Harness, Seat, Air Conditioner, Air Compressor |
| 5 ) Cooling parts: Radiator, heat sink, air conditioner, compressor, after cooler , water cooler hydraulic oil cooler etc |
| 6 ) Other parts: Service kit, swing circle, engine hood, swivel joint, fuel tank, filter, boom, arm, bucket etc. |
