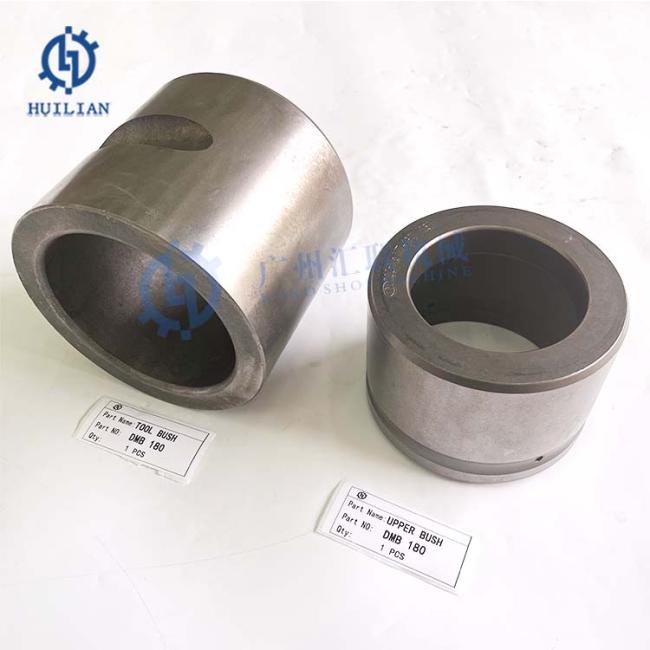

DMB70 DMB90 DMB140 DMB180 DMB210 DMB230 DMB250 DMB360 DMB450 Excavator Hydraulic Breaker Bushing

Name: DMB70 DMB90 DMB140 DMB180 DMB210 DMB230 DMB250 DMB360 DMB450 Excavator Hydraulic Breaker Bushing
Brand: Guangzhou Huilian Machine Equipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1Set

Delivery Time: 1-7days

Brand: Huilian

Product Description

DMB70 DMB90 DMB140 DMB180 DMB210 DMB230 DMB250 DMB360 DMB450 Excavator Hydraulic Breaker Bushing

Part Name	Breaker Bushing
Material	42CrMo
Feature	Wear Resistant
AppliCATEEEEEEEEEEion	Hydraulic Rock Breaker Hammer
OEM	Acceptable
MOQ	1 PCS
Delivery Time	3-7 Days

Product Parameter

Raw Material	Character	Model
40CrMo	√	MB750,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB2500,HB3100,HB3600,
		HB4100,HB4200,HB4700,HB7000,C70,C135,C140,C140,C165
		F12,F20,F22,F27,F35,HB20G,HB30G
		SB10,SB20,SB30,SB35,SB40,SB43,SB50,SB70,SB81,SB81N,SB100,SB121,SB130,SB140,SB151
42CrMo	√	MB750,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB2500,HB3100,HB3600,
		HB4100,HB4200,HB4700,HB7000,C70,C135,C140,C140,C165
		F12,F20,F22,F27,F35,HB20G,HB30G
		SB10,SB20,SB30,SB35,SB40,SB43,SB50,SB70,SB81,SB81N,SB100,SB121,SB130,SB140,SB151

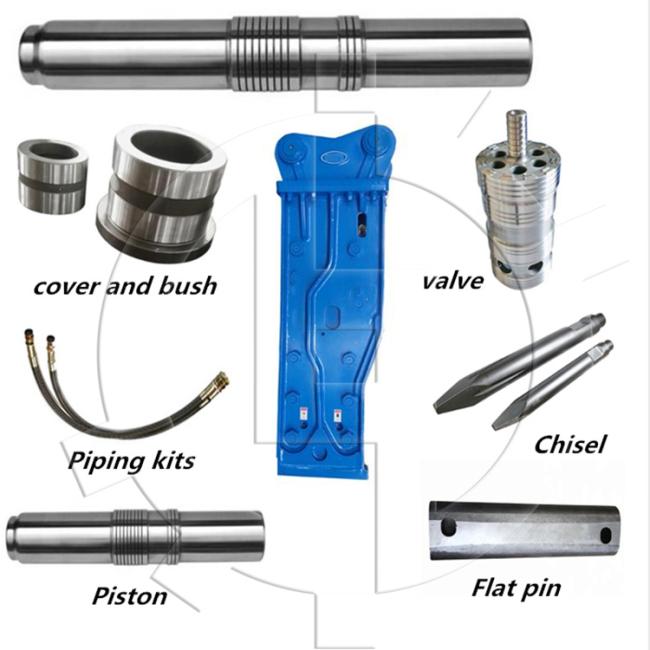

Hydraulic Breaker Hammer Parts

Hammer Parts	Main Body	Back Head	Charging Valve	Cylinder	Seal Retainer
Socket Plug	Piston	Adapter	Valve	Valve Plug	Valve Sleeve
Front Head	Grease Nipple	Rod Pin	Stop Pin	Rubber Plug	Front Head Pin
Ring Bush	Thrust Bush	Upper Bush	Front Cover	Tool Bush	Lower Bush
Rod Moil Point	Chisel	Washer	Through Bolt	Side Rod	Hex Nut
Air Check Valve	Valve Adjuster	Accumulator	Accumulator Body	Accumulator Cover	Socket Bolt
Charging V/V	Diaphragm	Seal Kit	O-Ring Seal	Gas Seal	Step Seal
Buffer Seal	Dust Seal	U-Packing	Back-up ring	Side Bolt	Upper Cushion
Down Cushion	Tool Set	N2 Gas Charging Set	N2 Gas Cylinder	B-3way valve assy

Our Hydraulic Breaker Product Parameter

MODEL	WEIGHT(KG) BOX TOP SIDE	LENGTH(MM) BOX TOP SIDE	REQUIRED OIL FLOW L/MIN	WORKING PRESSURE KG/CM M2	IMPACT RATE B.P.M	HOSE DIAMETER B.P.M	CHISEL DIAMETER IN	CHISEL LENGTH MM	APPLICABLE EXCAVATOT M3
EB-45	130 135 120	1265 1280 760	20-40	90-120	700-1200	1/2	45	450	0.03-0.1 1.2-3
EB-53	200 200 200	1342 1400 1140	20-50	90-120	600-1100	1/2	53	530	0.06-0.2 2.5-4.5
EB-68	330 330 327	1590 1610 1360	40-70	110-140	500-900	1/2	70	700	0.15-0.3 2.5-4.5
EB-75	450 450 468	1859 1822 1560	50-90	120-150	400-800	1/2	75	750	0.2-0.35 6-9
EB-85	680 680 650	2101 2096 1774	60-100	130-160	40D-800	3/4	85	85o	0.25-0.5 7-14
EB-100	1000 100o 8B7	2401 2351 1981	80-110	150-170	350-700	3/4	100	105o	0.4-0.6 11-16
EB-125	1300 1320 1250	2592 2600 2300	90-120	150-170	350-650	1	125	1100	0.5-0.7 15-18
EB-135	2000 2000 1800	2822 2762 2322	100-150	160-180	350-650	1	135	1200	0.7-0.8 18-21
EB-140	2050 2050 1960	2828 2040 2363	120-180	160-180	350-650	1	140	1250	0.7-0.9 18-26
EB-150	2800 2300 2670	3052 3047 2616	150-210	160-180	300-450	1	150	1400	0.3-1.2 25-30
EB-155	2800 2300 2670	3254 3083 2776	18O-240	160-180	300-450	1~1/4	155	1400	1.1-1.4 28-35
EB-165	340D 3200 3350	3450 3500 3000	200-260	160-180	250-400	1~1/4	165	1500	1.2-1.7 30-45
EB-175	4200 4200 3500	3709 3617 3200	210-290	160-180	200-350	1~1/4	175	1500	1_4-2.0 40-55
EB-180	4500 4500 4200	38oD 3800 3300	250-340	160-180	250-320	1~1/4	180	1600	1.9-3.5 45-60
EB-185	4500 4500 4200	3800 3800 3300	250-340	160-180	250-320	1~1/4	180	1600	1.9-3.5 45-60
EB-190	4650 4650 4350	3750 3750 3260	260-320	170-190	200-300	1~1/2	190	1600	1.9-4.5 45-75
EB-195	4650 46504350	3750 3750 3260	260-320	170-190	200-300	1~1/2	190	1600	1.9-4.5 45-75
EB-210	6350 6200 6100	4550 4500 4350	280-390	160-180	200-350	1~1/2	210	1800	3.8-7.5 70-100
