300x52.5Nx98 Undercarriage Rubber Rrack For Excavator Construction Machinery

Price Negotiable

Price: Competitive

MOQ: 1 Pieces

Delivery Time: 1-7days

Brand: huilian

Product Description

Our Rubber Track Advantages

1. High speed
2. Low noise
3. Less vibration
4. Superior traction
5.Light machinery weight
6.Less damage to the ground surface
7.Low pressure to the ground surface
8.Easy to change

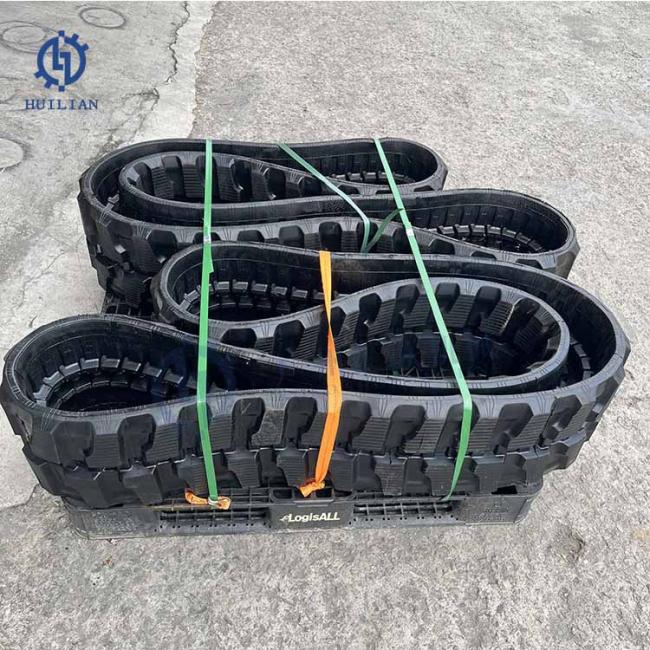

300x52.5Nx98 New Excavator Undercarriage Rubber Rrack for Excavator Construction Machinery

Part Name	Excavator Rubber Track
Quality	OEM High-Quality
AppliCATEEEEEEEEEEion	Excavator
Color	Black
Packing	Standard Wooden cx packing or as customized.
Payment Terms	T/T, Online trade assurance order (CC. VISA, T.T) paypal and Western Union
MOQ	1PC

Now we can produce the following size of rubber tracks:

NO.	SpecifiCATEEEEEEEEEEion	Links	NO.	SpecifiCATEEEEEEEEEEion	Links
1	150*72	30-37	23	300*109W	34-46
2	180*60	30-48	24	320*54	70-92
3	180*72	31-42	25	320*84	48-63
4	200*72	33-47	26	320*86	48-63
5	230*48	60-82	27	320*90	47-63
6	230*72	31-64	28	320*100	37-62
7	250*72NM	52-57	29	320*100NM	41-54
8	230*96	30-41	30	320*106	37-46
9	230*96NM	40-50	31	350*52.5	78-106
10	230*101	30-42	32	350*56	70-86
11	250*72	43-60	33	350*56R	70-84
12	260*96	36-44	34	350*109	40-50
13	260*109	35-46	35	350*75.5	72-82
14	280*72	56-67	36	Y370*107	36-44
15	280*106	35-40	37	370*107K	38-41
16	300*52.5N	68-98	38	400*72.5A(N)	68-82
17	300*52.5W	68-92	39	400*72.5B(W)	68-82
18	300*52.5K	68-92	40	Y400*72.5	68-82
19	300*55	70-86	41	400*72.5R	68-82
20	300*55.5	72-84	42	K400*72.5	68-82
21	K300*109	34-46	43	400*75.5	74-82
22	300*109N	34-46	44	400*107	35-47

We can provide following excavator parts

Engine Assembly	Final Drive Assy	Hydraulic Pump	Gear Pump
Swing Motor	Travel Motor	Fan Motor	Electrical Parts
Swing Gearbox	Travel Gearbox	Relief Valve	Distribution Valve
Available Engine Parts	Radiator	Main Valve	Belt
Liner Kit	Piston	Piston Ring	Engine Bearing
Cylinder Block	Gasket Kit	Gasket Head	Crankshaft
Valve	Valve Seat	Valve Guide	Nozzle
Bearing	Accelerator Motor	Transmitter	Pressure Switch
Flameout Solenoid	Monitor	Fan Cooling	Oil Filter

Product Parameter

Width*pitch(mm)	No. of links	A	B	C	D	E	Pattern	Guide rail
100*72	28-83	23	64.5	28	28	15	Af1	A1
120*56	22-56	20	50	24	30	15	AL	A1
130*72	28-53	23	64.5	28	28	15	AF1	A1
150*60	28-49	22	64	22.5	24.5	15	AC	A1
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	30-58	25	68	29	29	15	BK	A2
180*72K	30-37	20	61	22	19.5	17	BB1	B2
B180*72K	34-51	29	66	30	29	15	BE	A2
B180*72A	30-51	23	63	29	22	10	BE	A2
H180*72	30*50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	34-39	21	88	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
230*48	60-84	24	72	24	25	21	B1	B1
230*48K	60-84	24	66	21	20	19	B1	B1
230*72	42-56	24	62	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BDA2

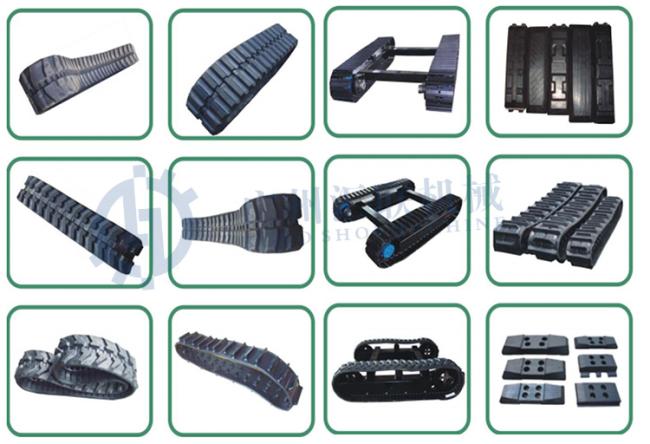

We Can Provide More Size Excavator Rubber Track

Width*pitch	Link	Rubber Track Size
130*72	29-40	180*60	230*48k
150*30	32-40	180*72	230*67
150*72	29-40	190*72	230*72
170*60	30-40	200*64	230*88
250*47	84	200*72	230*96
350*106	39-43	230*101	250*47
230*72	42-56	230*48	260*96
230*96		750*150	280*72
230*101		800*125	280*106
250*48.5K		......	.....
