SHY135 SHY137 SHY140 SHY165 SHY175 SANY Hydraulic Breaker Concrete Breaker Hydraulic Rock Hammer
Product AppliCATEEEEEEEEEEion:
SANY hydraulic breaker has three type: Side,Top and Silenced Box. With stably high quality and wide ranges models, SANY hydraulic breaker is suitable to work in the hardest rock and the most difficult excavation conditions.
SHY135 SHY137 SHY140 SHY165 SHY175 SANY Hydraulic Breaker Concrete breaker Hydraulic Rock Hammer
| Model | Weight(KG) | Hitting Power(J) | Bpm | Suitable tons |
| SHY45 | 99 | 271 | 700-1200 | 1.2T—3T |
| SHY53 | 132 | 406 | 600-1100 | 2.5T—4.5T |
| SHY68 | 260 | 470 | 500-900 | 4T—7T |
| SHY75 | 370 | 890 | 400-800 | 6T—9T |
| SHY100 | 830 | 1560 | 350-700 | 11T—16T |
| SHY140 | 1970 | 4067 | 350-500 | 18T—26T |
| SHY155 | 2655 | 6779 | 300-450 | 28T—35T |
| SHY165 | 2735 | 8812 | 250-400 | 30T—45T |
| SHY175 | 4167 | 12202 | 250-350 | 40T—55T |
| SHY195 | 5039 | 16602 | 180-200 | 45T—75T |
| SHY210 | 5700 | 26400 | 100-160 | 70T-100T |
| SHY230 | 8800 | 36280 | 70-120 | 70T-120T |
What is the difference among side type , box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box.
And it equiped with rubber cushion inside of the bracket to keep lower noise.
So it is also called silent type rock breaker.
The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors.
Both side type and top type breakers are with opening bracket, which is easy for maintenace and parts exchanging.
But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.
More Hydraulic Breaker Parts Please Contact Freely
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
Sany Hydraulic Breaker Feature
Sany Group's new product, the Sany Hydraulic Breaker, uses high-frequency impact force technology to break at a faster speed and greatly improve work efficiency. At the same time, it has high precision and can accurately control the impact force to avoid unnecessary damage to the surrounding environment and objects. The design takes into account factors such as shock absorption and vibration reduction to ensure the safety of workers.
Company Profile

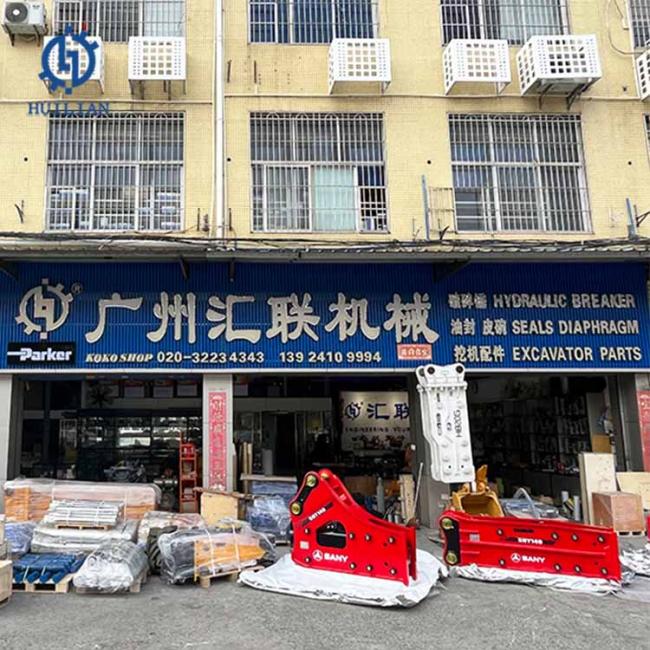

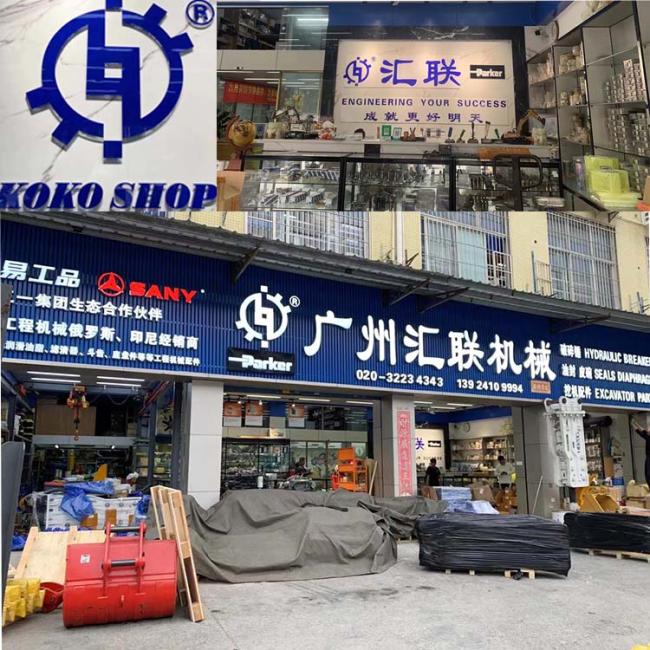

Guangzhou Huilian Machinery Equipment Co., Ltd. Our company was established in 2011.
Huilian is a professional spare parts manufacturer and reliable supplier, providing almost all spare parts for various models rock breakers.
Specializes in:
Excavator accessories
Hydraulic breaker accessories
Breaker Spare Parts Suitable for the brands: SOOSAN, FURUKAWA, KRUPP, ATLAS-COPCO, EDT, JCB, NPK, , HANWOO, TOKU, FINE, OKADA, SAGA, MONTABERT, INDECO, KWANGLIM, RAMMER, KONAN, KOMATSU, GENERAL etc. Excavator Spare Parts Suitable for the brands: CATEEEEEEEEEE, KOMATSU, HITACHI, EC, KOBELCO, cx, SUMITOMO, DOOSA, NHYUNDAI, SANY, XG ect. The logistics in Guangzhou is very convenient that we deliver goods to the whole world.
