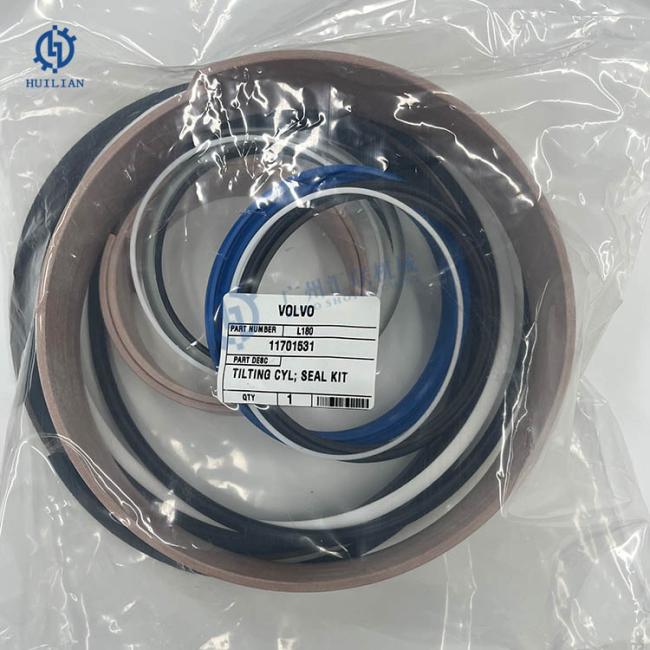

L150E L150F L150H L180 Tilt Cylinder Seal Kit 11709018 17264520 11709026 17264860 11701531 11990395 For Wheel Loader
L150E L150F L150H L180 Tilt Cylinder Seal Kit 11709018 17264520 11709026 17264860 11701531 11990395 For Wheel Loader
| Product Name | lifting cylinder seal kit |
| AppliCATEEEEion | L150E L150F L150H L180 Wheel loader |
| Hardness | 90-95 Shore A |
| Working Tempereture | -40--120℃(according to the material) |
| Part No. | 11709018 17264520 11709026 17264860 11701531 11990395 |
Hydraulic Cylinder Tilting
| Pos. | Part No | Qty | Parts name |
| VOE11088810 | [1] | Hydraulic cylinder | |
| 1 | VOE11088476 | [1] | Cylinder tube |
| 2 | VOE11093773 | [2] | Bushing |
| 3 | VOE11005019 | [4] | Scraper ring |
| 4 | VOE11088676 | [1] | Piston rod |
| 5 | VOE11005067 | [1] | Scraper ring |
| 6 | VOE11005106 | [1] | Piston rod seal |
| 7 | VOE11005104 | [1] | Piston rod seal |
| 8 | VOE11088879 | [2] | Bushing |
| 9 | VOE11005124 | [1] | Back-up ring |
| 10 | VOE13962511 | [1] | O-ring |
| 11 | VOE11088386 | [1] | Piston rod guide |
| 12 | VOE11005097 | [2] | Back-up ring |
| 13 | VOE925263 | [1] | O-ring |
| 14 | VOE11088469 | [1] | Piston seal |
| 15 | VOE11005324 | [1] | Guide ring |
| 16 | VOE11088675 | [1] | Piston |
| 17 | VOE11088650 | [1] | Screw |
| 18 | VOE2552116 | [1] | Pin |
| 19 | VOE13948937 | [22] | Screw |
| 20 | VOE941912 | [22] | Spring washer |
| VOE11701531 | [1] | Sealing kit |
| 14589140 | 14589141 | 14513826 | 14513727 |
| 14549708 | 14542035 | 14589144 | 14589143 |
| 14542086 | 14589336 | 14589337 | 14589338 |
| 14618213 | 14612139 | 14612138 | 14618212 |
| 14612138 | 146129139 | 14618213 | 14612138 |
| 14516932 | 14515053 | 14513718 | 14589122 |
| 14515052 | 14515051 | 14589156 | 14589132 |
| 14515053 | 14589129 | 14589131 | 14589132 |
| 145589134 | 14514454 | 14514457 | 14514455 |
| 14589135 | 14589133 | 14513714 | 14513715 |
| 14512950 | 14512968 | 14589138 | 14519158 |
| 14512961 | 14589139 | 14589140 | 14589141 |
| 14589139 | 14512961 | 14512950 | 14512948 |
