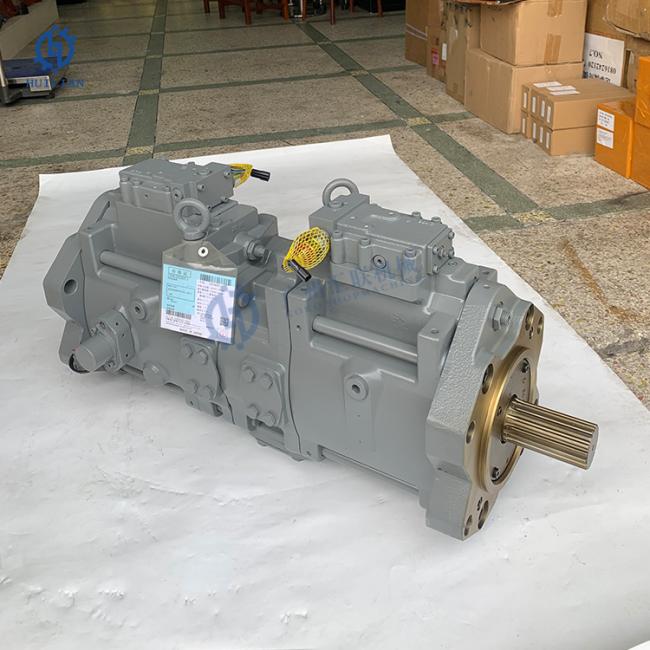

9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
Price:
RMB/USD
MOQ:
1Pieces
Delivery Time:
1-7 work days
Brand:
Huilian
Product Description
9139426 9168965 9169241 9184005 Hydraulic Pump Fits for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
| Product Name | Excavator Hydraulic Pump |
| Machine model | EX750-5 EX800H-5 |
| Part number | 9139426 9168965 9169241 9184005 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. |
| 9139426 | PUMP; PISTON | 1 | |
| 1 | 4391503 | . REGULATOR | 2 |
| 11 | 4312157 | . PISTON | 2 |
| 11 | 718001 | . PISTON | 2 |
| 011A | .. PISTON | 9 | |
| 011B | .. SHOE | 9 | |
| 13 | 703001 | . CYL. | 1 |
| 013A | .. BLOCK; CYL. | 1 | |
| 013B | .. PLATE; VALVE | 1 | |
| 14 | 703002 | . CYL. | 1 |
| 014A | .. BLOCK; CYL. | 1 | |
| 014B | .. PLATE; VALVE | 1 | |
| 30 | 703003 | . PLATE | 2 |
| 30 | 719701 | . PLATE | 2 |
| 030A | .. PLATE | 1 | |
| 030B | .. BUSHING | 1 | |
| 030C | .. LEVER | 1 | |
| 030D | 703004 | .. BOLT | 1 |
| 030E | 218839 | .. PIN | 1 |
| 030F | 703005 | .. PIN | 1 |
| 111 | 703006 | . SHAFT | 1 |
| 113 | 703007 | . SHAFT | 1 |
| 114 | 703008 | . COUPLING | 1 |
| 123 | 703009 | . BRG. | 2 |
| 124 | 682303 | . BRG.; NEEDLE | 2 |
| 127 | 339809 | . SPACER | 4 |
| 130 | 703010 | . BOOSTER | 1 |
| 153 | 682305 | . RETAINER | 2 |
| 153 | 718002 | . RETAINER | 2 |
| 156 | 682306 | . BUSHING | 2 |
| 157 | 682307 | . SPRING | 18 |
| 158 | 682308 | . SPACER | 2 |
| 211 | 682309 | . PLATE | 2 |
| 251 | 703011 | . SUPPORT | 2 |
| 251 | 703011 | . SUPPORT | |
| 261 | 682311 | . COVER | 1 |
| 263 | 703012 | . COVER | 1 |
| 271 | 703013 | . CASING; PUMP | 2 |
| 311 | 703014 | . COVER; VALVE | 1 |
| 312 | 703015 | . COVER; VALVE | 1 |
| 401 | 682316 | . BOLT; SOCKET | 4 |
| 402 | 703016 | . BOLT; SOCKET | 4 |
| 403 | 237902 | . BOLT; SOCKET | 2 |
| 406 | M340820 | . BOLT; SOCKET | 8 |
| 414 | 150809 | . BOLT; SOCKET | 2 |
| 466 | 236014 | . PLUG | 3 |
| 468 | 175233 | . PLUG | 4 |
| 490 | 263019 | . PLUG | 31 |
| 491 | 451027 | . SCREW | 4 |
| 492 | 451028 | . PLUG | 5 |
| 493 | 682317 | . RESTORICTOR | 2 |
| 530 | 703017 | . PIN | 2 |
| 532 | 682318 | . PISTON; SERVO | 2 |
| 534 | 682319 | . STOPPER | 2 |
| 535 | 682320 | . STOPPER | 2 |
| 702 | 4292386 | . O-RING | 2 |
| 706 | 703018 | . O-RING | 1 |
| 710 | 682321 | . O-RING | 2 |
| 717 | 682322 | . O-RING | 4 |
| 718 | 703019 | . O-RING | 1 |
| 724 | 443801 | . O-RING | 19 |
| 725 | 4297379 | . O-RING | 3 |
| 728 | 443408 | . O-RING | 4 |
| 732 | 682324 | . O-RING | 2 |
| 774 | 682325 | . SEAL; OIL | 1 |
| 789 | 682326 | . RING; BACK-UP | 2 |
| 792 | 682327 | . RING; BACK-UP | 2 |
| 803 | 4366339 | . UNIT (TILTING-PROBING) | 2 |
| 808 | 451038 | . NUT | 4 |
| 824 | 960323 | . RING; RETAINING | 2 |
| 885 | 313404 | . PIN | 2 |
| 886 | 4144353 | . PIN; SPRING | 5 |
| 901 | 177612 | . BOLT; EYE | 2 |
| 953 | 339847 | . SCREW | 2 |
| 954 | 682328 | . SCREW; SET | 2 |
| 974 | 451203 | . WASHER | 2 |
| 974 | 451204 | . WASHER | 2 |
| 981 | . NAME-PLATE | 1 | |
| 983 | . PIN | 2 | |
| 995 | 9102385 | . SENSOR; ANGLE | 1 |
| 996 | 4255077 | . SPRING; PLATE | 1 |
| 997 | 4274371 | . O-RING | 1 |
