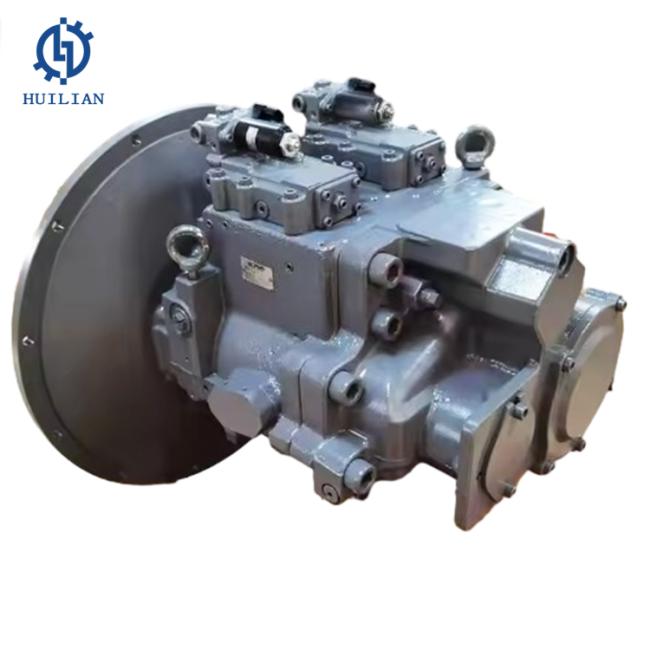

Excavator Spare Parts ZAX450 Main Pump K5V200DTP-OE11 For hitachi Excavator 9184686 Hydraulic pump
Excavator Spare Parts ZAX450 Main Pump K5V200DTP-OE11 For hitachi Excavator 9184686 Hydraulic pump
Product Description
The Excavator Hydraulic Pump is a crucial component in the excavator hydraulic power unit. This product provides the hydraulic power required to lift, dig, and move heavy loads in the construction industry. The K5V200DTP-OE11 ZAX450 Excavator Hydraulic Pump is designed to meet the high demands of the excavator industry and is built to last.
The K5V200DTP-OE11 ZAX450 Excavator Hydraulic Pump is suitable for use in various scenarios. It can be used in construction sites, mining operations, and other heavy-duty appliCATEEions that require the use of an excavator.
The Excavator Hydraulic Pump is designed to work with the JCB130 JCB160 excavator models and has a part number of 9184686. This product is a reliable and efficient solution for those looking to replace their existing excavator hydraulic component or for those looking to upgrade their existing system.
| Model Number | ZAX450 |
| Power Source | Hydraulic |
| AppliCATEEion | Excavator |
| Part Number | 9184686 |
list of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9184686 | PUMP; PISTON | 1 | ||
| 001 | 4469526 | REGULATOR | 2 | |
| 011 | 0820401 | PISTON ASSY | 2 | |
| 011A | PISTON | 9 | ||
| 011B | SHOE | 9 | ||
| 013 | 0820402 | CYL. ASSY | 1 | |
| 013A | BLOCK; CYL. | 1 | ||
| 013B | PLATE; VALVE | 1 | ||
| 014 | 0451003 | CYL. ASSY | 1 | |
| 014A | BLOCK; CYL. | 1 | ||
| 014B | PLATE; VLAVE | 1 | ||
| 030 | 0820403 | PLATE ASSY | 1 | |
| 030A | PLATE | 1 | ||
| 030B | BUSHING | 1 | ||
| 030C | LEVER | 1 | ||
| 030D | BOLT | 1 | ||
| 030E | PIN | 1 | ||
| 030F | PIN | 1 | ||
| 031 | 0820404 | PLATE ASSY | 1 | |
| 031A | PLATE | 1 | ||
| 031B | BUSHING | 1 | ||
| 031C | LEVER | 1 | ||
| 031D | BOLT | 1 | ||
| 031E | PIN | 1 | ||
| 031F | PIN | 1 | ||
| 111 | 0820405 | SHAFT | 1 | |
| 113 | 0820406 | SHAFT | 1 | |
| 123 | 0820407 | BRG.; ROL. | 2 | |
| 124 | 0820408 | BRG.; NEEDLE | 2 | |
| 126 | 0820409 | SPACER | 2 | |
| 127 | 0820410 | SPACER | 1 | |
| 128 | 0820411 | SPACER | 3 | |
| 129 | 0820412 | SPACER | 1 | |
| 130 | 0820413 | BOOSTER | 1 | |
| 131 | 0820414 | COVER | 1 | |
| 153 | 0820415 | RETAINER | 2 | |
| 156 | 0820416 | BUSHING | 2 | |
| 157 | 0451016 | SPRING | 18 | |
| 171 | 0820417 | CASING | 1 | |
| 191 | 0820418 | GEAR; DRIVE | 1 | |
| 192 | 0820419 | GEAR | 1 | |
| 211 | 0451018 | PLATE | 2 | |
| 251 | 0820420 | SUPPORT | 2 | |
| 261 | 0820421 | COVER; SEAL | 1 | |
| 261 | 0820440 | COVER; SEAL | 1 | |
| 262 | 0820422 | COVER | 1 | |
| 271 | 0820423 | CASING | 1 | |
| 312 | 0820424 | COVER; VALVE | 1 | |
| 402 | 0237902 | BOLT; SOCKET | 4 | |
| 405 | 0134701 | BOLT; SOCKET | 8 | |
| 406 | M341236 | BOLT; SOCKET | 8 | |
| 408 | 0131103 | BOLT; SOCKET | 11 | |
| 409 | 0820425 | BOLT; SOCKET | 2 | |
| 410 | 0820426 | BOLT; SOCKET | 9 | |
| 411 | 0820427 | BOLT; SOCKET | 2 | |
| 412 | 0820428 | BOLT; SOCKET | 1 | |
| 413 | M341025 | BOLT; SOCKET | 5 | |
| 414 | M340820 | BOLT; SOCKET | 4 | |
| 467 | 0629404 | PLUG | 2 | |
| 469 | 0697911 | PLUG | 3 | |
| 490 | 0263019 | PLUG | 20 | |
| 491 | 0451028 | PLUG | 14 | |
| 492 | 0451027 | SCREW | 4 | |
| 493 | 0102440 | PLUG | 2 | |
| 530 | 0820438 | PIN ASSY | 2 | |
| 530A | PIN | 2 | ||
| 530B | PIN | 2 | ||
| 532 | 0820429 | PISTON; SERVO | 2 | |
| 534 | 0451031 | STOPPER | 2 | |
| 535 | 0820430 | STOPPER | 2 | |
| 536 | 0820431 | COVER | 2 | |
| 540 | VALVE; CHECK ASSY | 2 | ||
| 540 | 0820444 | VALVE; CHECK ASSY | 2 | |
| 541 | 0738217 | SEAT | 1 | |
| 541 | 0820441 | SEAT | 1 | |
| 543 | 0738218 | STOPPER | 1 | |
| 543 | 0820442 | STOPPER | 1 | |
| 545 | 0221509 | BALL; STEEL | 1 | |
| 702 | 0451033 | O-RING | 2 | |
| 709 | 0694604 | O-RING | 1 | |
| 711 | 0820432 | O-RING | 1 | |
| 712 | 0820433 | O-RING | 1 | |
| 724 | 0443801 | O-RING | 7 | |
| 725 | 4297379 | O-RING | 6 | |
| 726 | 0443405 | O-RING | 2 | |
| 728 | 0443408 | O-RING | 3 | |
| 732 | 0451035 | O-RING | 2 | |
| 752 | 0820439 | PACKING | 2 | |
| 774 | 0384208 | SEAL; OIL | 1 | |
| 774 | 0820443 | SEAL; OIL | 1 | |
| 789 | 0451036 | RING; BACK-UP | 2 | |
| 792 | 0451037 | RING; BACK-UP | 2 | |
| 804 | 4469592 | UNIT(TILTING-PROBING 0804100 | 2 | |
| 806 | 0451038 | NUT | 2 | |
| 807 | 0820434 | NUT | 2 | |
| 823 | 959499 | RING; RETAINING | 1 | |
| 824 | 991345 | RING; RETAINING | 3 | |
| 825 | 488075 | RING; RETAINING | 2 | |
| 827 | 991728 | RING; RETAINING | 1 | |
| 828 | 0820435 | RING; RETAINING | 2 | |
| 885 | 0313404 | PIN | 2 | |
| 886 | 0244604 | PIN; SPRING | 4 | |
| 888 | 0820436 | PIN | 2 | |
| 901 | 0134458 | BOLT; EYE | 2 | |
| 953 | 0738221 | SCREW; SET | 2 | |
| 954 | 0682328 | SCREW; SET | 2 | |
| 974 | 0451203 | WASHER | 4 | |
| 981 | 0625508 | NAME-PLATE | 1 | |
| 983 | 0625509 | PIN | 2 | |
| 995 | 9102385 | SENSOR; ANGLE | 2 | |
| 995 | 4444902 | SENSOR; ANGLE | 2 | |
| 996 | 4255077 | SPRING; PLATE | 2 | |
| 997 | 4274371 | O-RING | 2 |

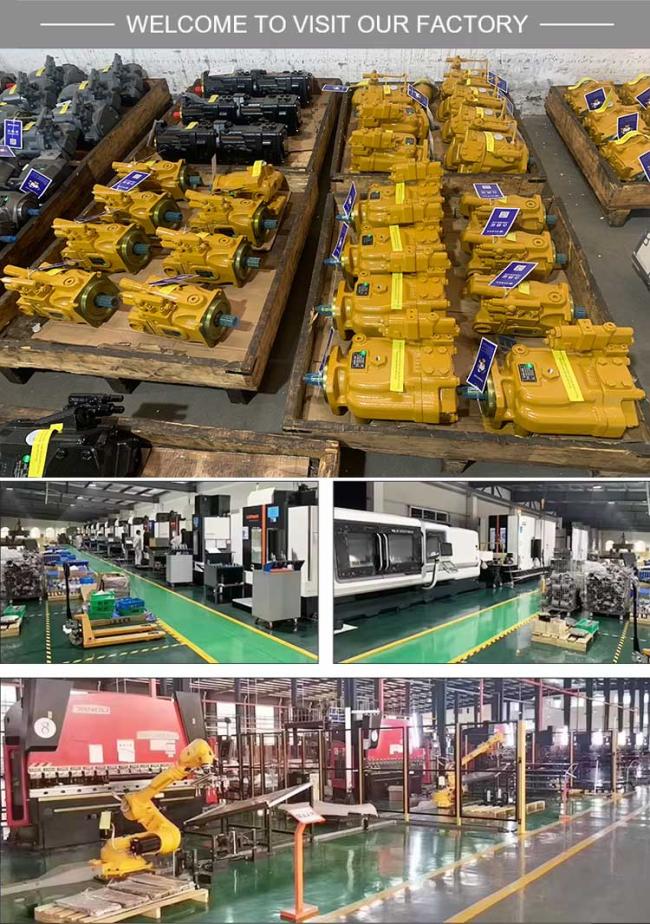

Company Profie
Koko Shop Machine Co., Ltd (EB Seals) is a professional supplier for hydraulic breaker parts and excavator parts and OEM hydraulic seals manufacturer. We specialize in completed seal kits and separate seals for hydraulic breaker and excavator more than Ten years in Guangzhou, China. Koko Shop supply almost all brands breakers' parts like Seal kits, Diaphragm, Piston, Chisel, Wear Bush upper and lower, Rod Pin, Through Bolts, Side Bolts, Control Valve,Front Head, Cylinder, Accumulator, N2 Gas Charging Kit, etc. Also supply almost all brands excavator' parts like hydraulic cylinder boom arm bucket seal kit, hydraulic pump and travel swing motor etc. We insist on high quality parts with genuine and OEM after market replacement parts.
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
