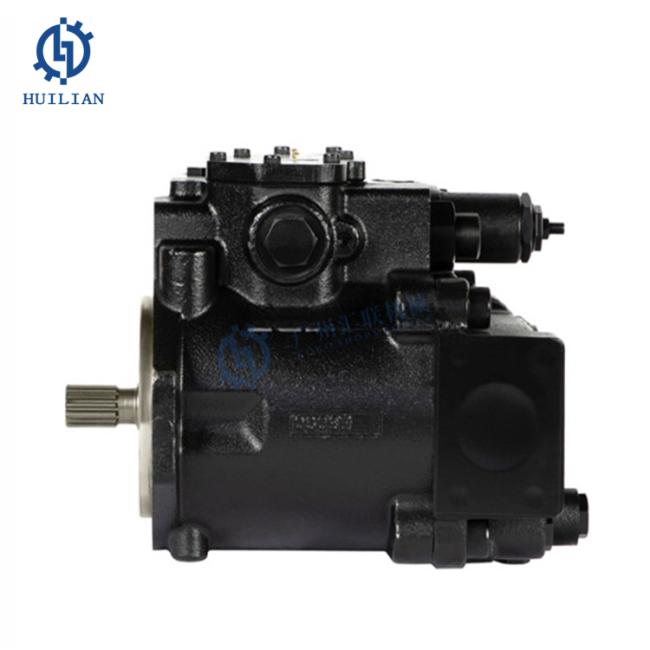

Excavator Spare Parts YT10V00003F1 2437U390F1 Excavator Hydraulic Pump For Kobelco SK60SR SK70SR
Excavator Spare Parts YT10V00003F1 2437U390F1 Excavator Hydraulic Pump For Kobelco SK60SR SK70SR
Product Description
| Product Name | Excavator Hydraulic Pump |
| Oem No | YT10V00003F1 2437U390F1 |
| Engine No | SK60SR SK70SR |
| Packing Number | 1 |
| N.W/KG | 35KG |
| G.W/KG | 50KG |
| Packing Size | 35*32*30 |
| Related Oem | 2480U323F1 YT10V00003F3 |
| Pressure | Standard, High Pressure |
Features of Excavator Hydraulic Pump
1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.
2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.
3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.
4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.
5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.
A. Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
B. The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
C. Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.
| Pos. | Part No | Qty | Parts name | Remark |
| 2437U390F1 | [1] | PUMP | KOB PUMP ASSY Superseded by part number: 2437U486F1 | |
| 1 | 2480U323F1 | [1] | CONTROL ASSY | |
| 2 | 2416R481F1 | [1] | HANGER | KOB |
| 3 | 24100R232F1 | [2] | ROTARY DIVIDER | KOB |
| 4 | 2414R430F1 | [1] | COVER ASSY | |
| 5 | 2410R335F1 | [1] | KOB | |
| 5-1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 5-2. | ZR26X06200 | [1] | SNAP RING | KOB |
| 5-3. | NSS | [1] | NOT SOLD SEPARAT | CON SEAL,OIL |
| 5-4. | 2410R335S4 | [1] | O-RING | KOB |
| 6 | 2437U386F1 | [1] | PUMP | HIT |
| 7 | NSS | [1] | NOT SOLD SEPARAT | CON SHAFT |
| 3 | 2437U390S8 | [1] | CONTACT PLATE | KOB |
| 9 | NSS | [1] | NOT SOLD SEPARAT | CON BEARING |
| 10 | 2414R268S3 | [2] | PIN | |
| 11 | 2437U390S11 | [1] | SHIM | KOB SHIM |
| 12 | ZR16X02800 | [1] | SNAP RING | KOB |
| 13 | 2437U390S13 | [1] | PLUG | |
| 14 | ZD12P01100 | [1] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 15 | NSS | [1] | NOT SOLD SEPARAT | CON |
| 15-1. | NSS | [2] | NOT SOLD SEPARAT | CON |
