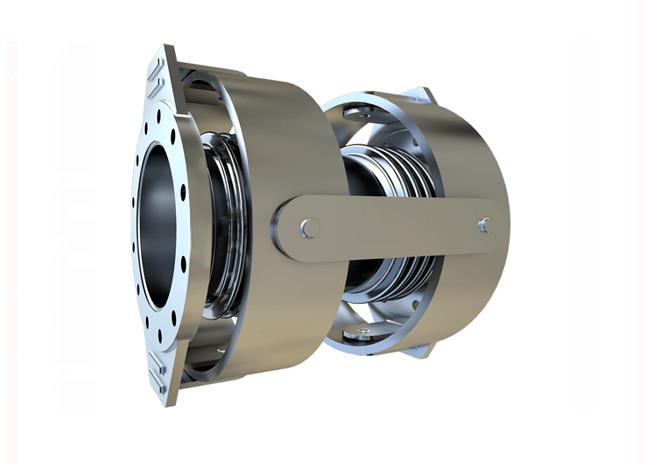

Univeral Size Gimbal Type Corrugated Expansion Joint Pipe Compensator With Flange

Product description

The universal hinge wave compensator is composed of a connecting pipe, a corrugated pipe, and a pair of hinges connected to the connecting pipe.It can only absorb the angular displacement of a single plane.When absorbing displacement, two or three angular expansion joints should be used in combination.The hinge of the metal corrugated compensator has the ability to withstand internal pressure thrust.

Connection method

1. Flange connection

2. Takeover connectionCompensation amount: ± 4 degrees-± 9 degrees

Structural features of universal gimbal corrugated compensator

The universal gimbal ripple compensator has a universal ring, and there are two pairs of mutually perpendicular gimbla structures around the universal ring, so it can absorb the angular displacement of any plane.When the displacement can be always absorbed, two or three combinations should be used.

Universal Gimbal corrugated compensator Model:

Our factory produces DN100——3000mm pressure level 0.1-2.5Mpa

universal Gimbal ripple compensator (BHWJ type) connection:

1, flange connection type

2, take over connection typeFourth, the universal hinge ripple compensator (BHWJ type) compensation amount: ± 2 degrees-± 9 degrees

The universal Gimbal compensator can compensate the angular displacement in any plane.The universal Gimbal compensator has a universal ring, and there are two pairs of hinge structures perpendicular to each other around the universal ring.ZhThe universal Gimbal corrugated compensator is divided into a compound hinge lateral corrugated compensator and a single hinge lateral corrugated compensator, which is used to compensate the lateral displacement of a curved pipe section. Their Gimbal can withstand the thrust of internal pressure.The universal Gimbal corrugated compensator is actually a combination of two angular corrugated pipes and long middle and indirect pipes, which can absorb the lateral bending displacement in the direction of a single plane.

Notes on installation and use of universal Gimbal ripple compensator:

A.The tie rods on the compensator are used for installation, transportation, and adjustment. They cannot be used as load-bearing parts. After the product is installed on the pipeline, the tie rods must be removed before putting it into operation.

B. When the corner distortion of the compensator is required or the system working pressure is high, it is recommended that the product be "cold-tightened" during installation, which is generally 50% cold-tightened or 100% cold-tightened.The advantages of cold tightness are mainly the stable operation of the compensator and pipeline.C. Pay attention to the rotation plane of the compensator hinge during installation, which is consistent with the displacement.
