DN15-DN2000 Metal Expansion Joint for Lateral Movement Compensator
Metal Expansion Joint for Lateral Movement Compensator
100% Tested Before Delivery
FIDAK Bellows, more flexible, longer service life
More than 20-year experience in manufacturing
It should be installed offset to absorb the movement. When installed, it must be at the fully extended length and at 90° to the line of movement. Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.

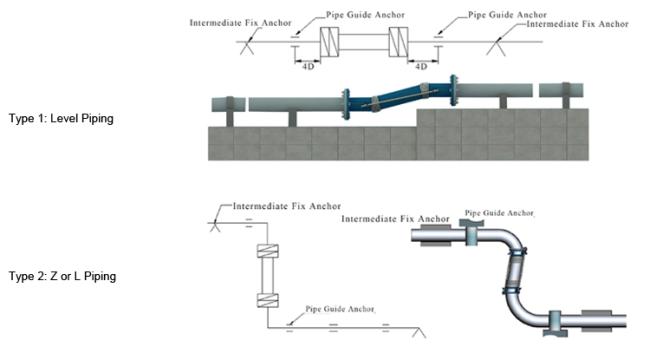

Application
1. One Plane System:
It can be instead of two hinged joints to absorb the movement
2. Two Planes System:
It can be instead of two gimbal joints. Maybe used in the offset pipe as shown.
Construction
| ITEM | PARTS | MATERIAL | REMARK |
| 1 | Bellows | SUS304 | SUS316/321 |
| 2 | Flanges | SS400 | SUS304/316/321 |
| 3 | Tube End | SS400 | SUS304/316/321 |
| 4 | Tie Rods | SS400 | SUS304/316 |
Specification
| Nominal Bore | Total Length to ±25mm Lateral Mvmt | Bellows O.D. | Force to Deflect Max | Length Added for Each Extra ±25mm | Rated Working Pressure kg/cm2 | ||
| mm | ins | mm | mm | kg | mm | EH-800 | EH-800H |
| 50 | 2 | 600 | 76 | 4.0 | 210 | 10 | 16 |
| 65 | 2 1/2 | 600 | 92 | 10.6 | 210 | 10 | 16 |
| 80 | 3 | 700 | 106 | 8.1 | 210 | 10 | 16 |
| 100 | 4 | 700 | 133 | 8.9 | 210 | 10 | 16 |
| 125 | 5 | 750 | 163 | 28.7 | 210 | 10 | 16 |
| 150 | 6 | 750 | 190 | 37.7 | 210 | 10 | 16 |
| 200 | 8 | 800 | 252 | 73.3 | 210 | 10 | 16 |
| 250 | 10 | 800 | 315 | 165 | 240 | 10 | 16 |
| 300 | 12 | 1000 | 366 | 205 | 360 | 10 | 16 |
| 350 | 14 | 1000 | 396 | 266 | 360 | 10 | 16 |
| 400 | 16 | 1000 | 460 | 432 | 360 | 10 | 16 |
| 500 | 20 | 1200 | 561 | 470 | 480 | 10 | 16 |
| 600 | 24 | 1200 | 663 | 791 | 480 | 10 | 16 |
*Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement
*Flange Standard: JIS, ANSI, DIN, B.S. JB etc
Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.
