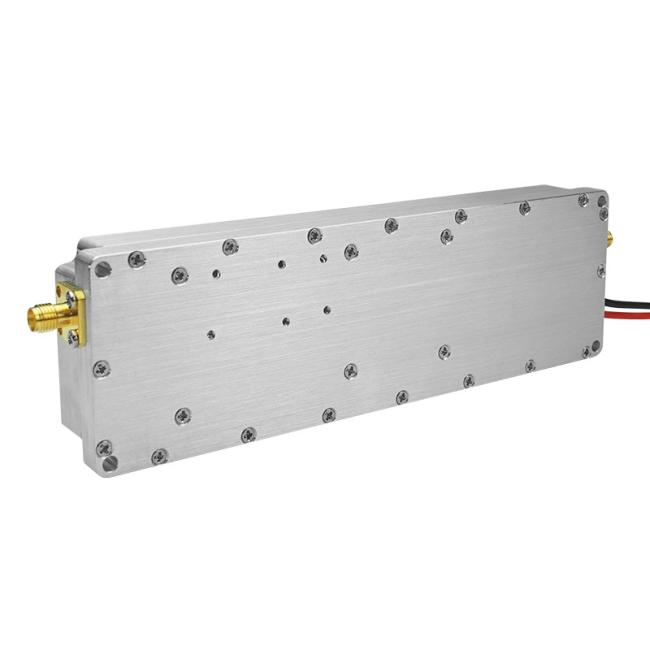

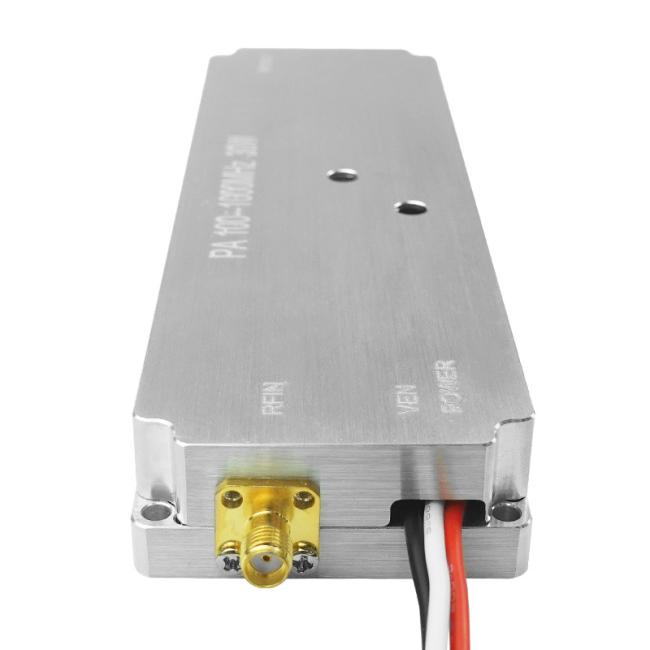

400-5800MHz 50W Amplifier Module with Temp Protection for Wide Range of Applications
400-5800MHz 50W Amplifier Module with Temp Protection
This 400-5800MHz 50W amplifier module with temp protection is designed by TeXin company. This high-performance 400-5800MHz 50W amplifier module is a cutting-edge solution for enhancing signal strength in a wide range of applications. Equipped with advanced temperature protection technology, it ensures stable and reliable operation even in demanding environments.
This 400-5800MHz 50W amplifier module with temp protection covers the frequency range from 400MHz to 5800MHz, making it suitable for a variety of communication systems such as school,Broadcasting ,prison and so on. The amplifier module features a compact and lightweight design, which is convenient for installation and integration into various systems.
400 - 5800MHz 50W Amplifier Module with Temp Protection Specification
| No. | Item | Data | Unit | Notes |
| 1 | Frequency | 400-5800 | MHZ | Customized |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 50 | W | |
| 4 | Work Voltage | DC28 | V | |
| 5 | Max Gain | 47 | dB | |
| 6 | Flatness | ±1 | dB | |
| 7 | Max Current | 4 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control |
high low level current |
V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |

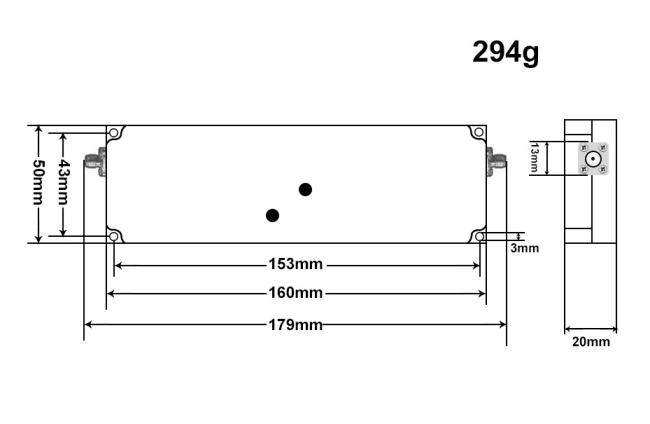

| 14 | Size | 179*50*20 | mm | |
| 15 | Weight | 0.294 | Kg |
Product features
1. With Temperature Protection
2. Compact and Portable
3. Customized frequency you want.
