3.5dbi Circular Polarization omni fiberglass antenna waterproof vehicle mount method
3.5dbi Circular Polarization omni fiberglass antenna waterproof vehicle mount method

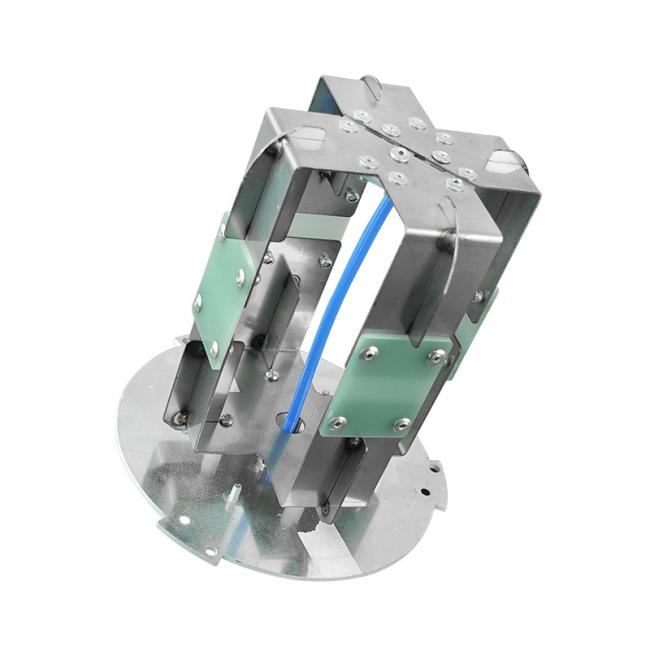

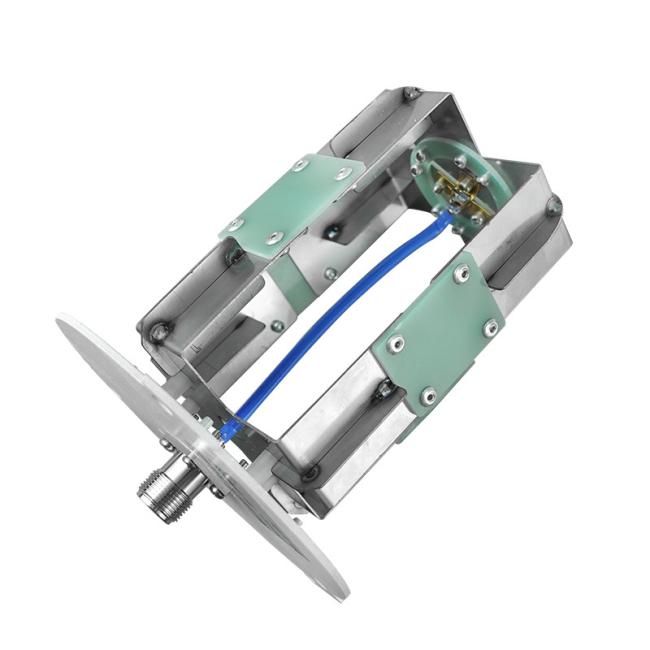

This is circular polarization omni fiberglass antenna 100% produced by factory ,it is takes circular polarization that can long distance release signal.It can be used in a variety of scenarios, such as wireless monitoring WIFI, home communication equipment, and can also be used in the field of drone signal interference. This product has good performance, easy installation, and can be used indoors or in harsh outdoor environments.
Features
* 300~1500MHz Frequency Range
*28V voltage
* 3.5dbi Gain circular polarization
*High quailty and good performance
*Wide range of applications
Applications
■ Wireless data communication
■ Wireless rf module
■ Out door AP
■ 360° full range emit signal
■ Support customized frequency and power
■ Light weight 350g portable to carry and install
| █Electrical Specifications | |
| FrequencyRange | 800-1620MHz |
| Gain(dBi) | 3.5±0.5dBi |
| VSWR | ≤2 |
| Polarization | Vertical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
360º 55±5º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | Sma-K |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | ɸ115*140mm |
| Packing size(mm) | 470*350*220mm(20PCS) |
| Antenna weight(kg) | 0.35KG |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | Black |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine installation |
