Product Description
DIN 7964 (E) Metric Size Reduced Shank Bolts and Screws with Coarse Thread - Hexagon Socket Head
Hexagon socket head reduced shank screws are screws that are loose but won't fall off. They are also called captive screws, spring screws. They are riveted or expanded on the mounting plate and are mostly used in power supply technology, switches, chassis cabinets, and other industries.
Basic Info.
Model NO.
FLRS-S020
OEM
Accept
Head Style
Cylindrical head
Standard
DIN7964 (E)
Grade
A2-70 A4-70
Product Name
Hex Socket Cap Head Reduced Shank Screws
Drawing
Accept
Sample
Free Sample When It Is in Stock
Thread
UNC, UNF
Service
Custom-Made Service
Color
Natural
Delivery Time
Base on The Quantity
Size Standard
Metric/Inch
Price
Base on The Size, Material, Quantity
Payment Term
EXW, DAP, FOB, CIF, etc.
Quality
100% After Inspection
Non-Standard Sample Time
7 -10 Days
Material Test Certificate
Have
Go-No Go Gauges Test
Yes
Transport Package
Plastic Bags and Cartons
Specification
M2.5-M30
Trademark
As customer's request
Origin
China
HS Code
7318159090
Product Description
| Standard | DIN7964 (E) |
| Size | Diameter M2.5-M30 ; Length 8-160mm |
| Sample service | Free sample but freight cost is paid by customers(when sample is in stock), Otherwise need customer to pay for sample |
| Material | Stainless steel |
| MOQ | 1000 pieces |
| Finish | Plain |
| Package | Plastic bag, Boxes and cartons, Pallets, Customized |
| Price terms | EXW, FOB, CIF, etc. |
| Payment terms | T/T, L/C etc. |

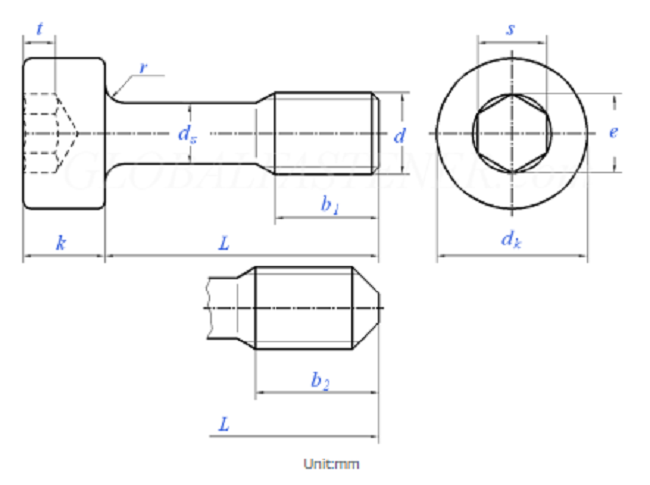

1.Drawing
Made from stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

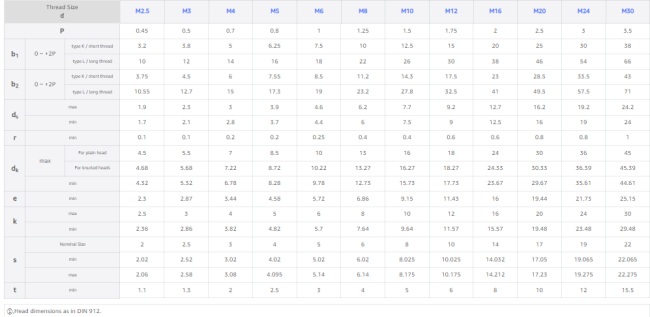

2.Size

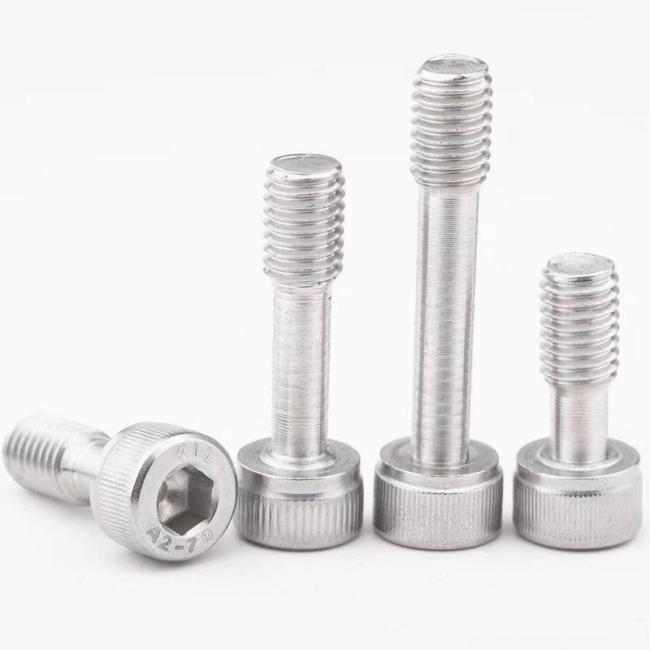

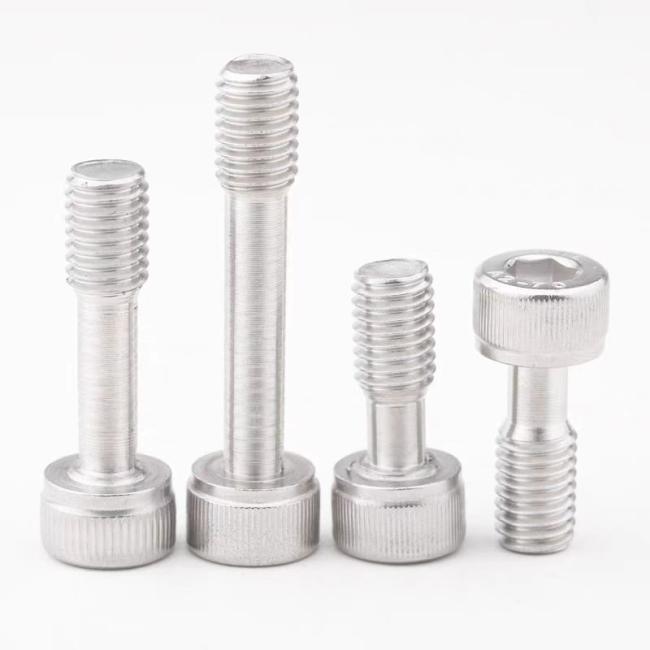

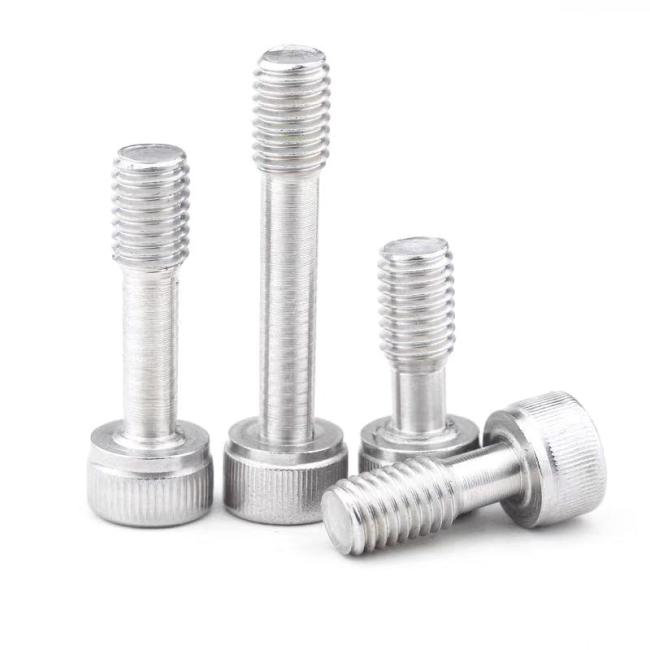

3. pictures
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is FLRS.
- Q: What is the model number of this product?
- A: The model number of this product is FLRS-S020.
- Q: Where is this product made?
- A: This product is made in China.
- Q: What is the material of this product?
- A: The material of this product is SS304 or SS316.
- Q: What type of head does this bolt have?
- A: This bolt has a hex socket cap head.
- Q: Is this product suitable for outdoor use?
- A: Yes, this product is suitable for outdoor use.
