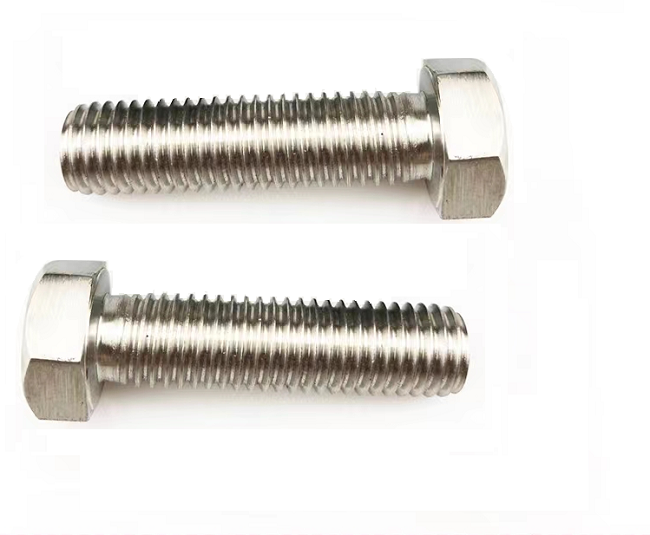

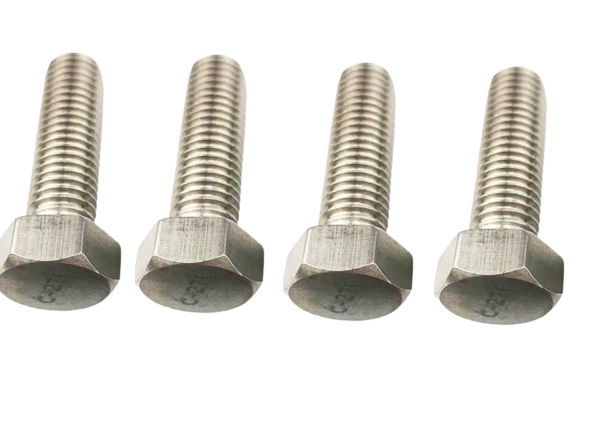

Custom C276 Hastelloy Hex Head Bolt Corrosion Resistant Natural Finish Non Standard
C-276 Hastelloy Hex Head Bolt Corrosion Resistant Natural Finish /Non-standard custom Hastelloy Hex bolts
Hexagon Bolt: A type of fastener consisting of a head and a screw (a cylinder with an external thread), which needs to be matched with a nut to fasten and connect two parts with through holes.
Material : C-276 Hastelloy is a nickel-based alloy of the nickel-molybdenum-chromium-iron-tungsten system and is one of the most corrosion-resistant of modern metal materials. It is mainly resistant to wet chlorine, various oxidising chlorides, chlorinated salt solutions, sulphuric acid and oxidising salts, and has excellent corrosion resistance in low and medium temperature hydrochloric acid. Therefore, in the past thirty years, in the harsh corrosive environment, such as chemical, petrochemical, flue gas desulphurization, pulp and paper, environmental protection and other industrial fields have a fairly wide range of applications.
| Chemical | Fe | C | Si | Mn | P | S | Cr | Mo | W | V | Co |
| Min | 4 | - | - | - | - | - | 14.5 | 15 | 3 | - | - |
| Max | 7 | 0.01 | 0.08 | 1 | 0.04 | 0.03 | 16.5 | 17 | 4.5 | 0.35 | 2.5 |
| GB | ISC | Commercial No | UNS | DIN EN/DIN | W-Nr. | BS EN/BS |
| NS 3304 (NS 334) (00Cr15Ni60Mo16W5Fe5) |
H10276 (H 03304) |
Inconel 276 Inconel C-276 |
N 10276 | NiMo16Cr15W | 2.482 | NA 45 |
| Standard | DIN933, ,ASME B18.2.1 |
| Size | Standard & non-standard, customized |
| Material | C-276 Hastelloy |
| Thread | UNC,UNF,BSW |
| Finish | Natural |
| Packing | Bulk in cartons on polywood pallet |
