RF4+2C Mini CCTV Camera Cable , Siamese Coaxial Cable Yellow SOLID PE to Brazil
RF4+2C CCTV Cable Solid PE Mini Coax with Power wire Export to Brazil
7x0.18mm BC+2.3mm SPE+16x5x0.12mm CCA +4.0mm PVC+26AWG(10*0.13) CCA Power Wire

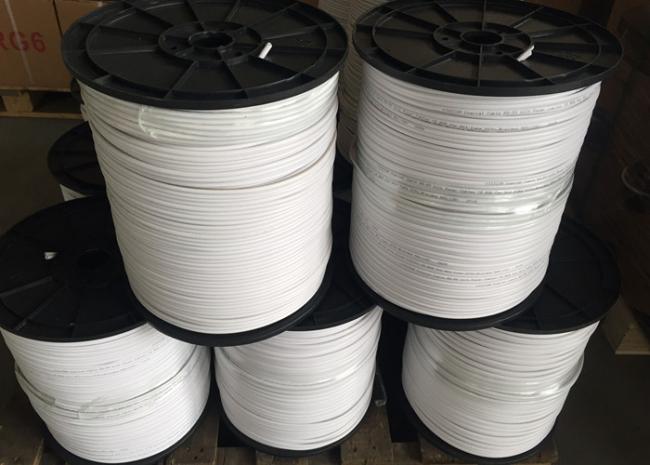

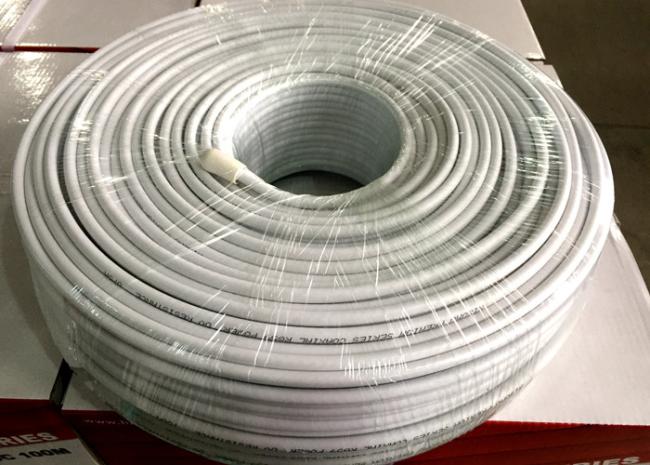

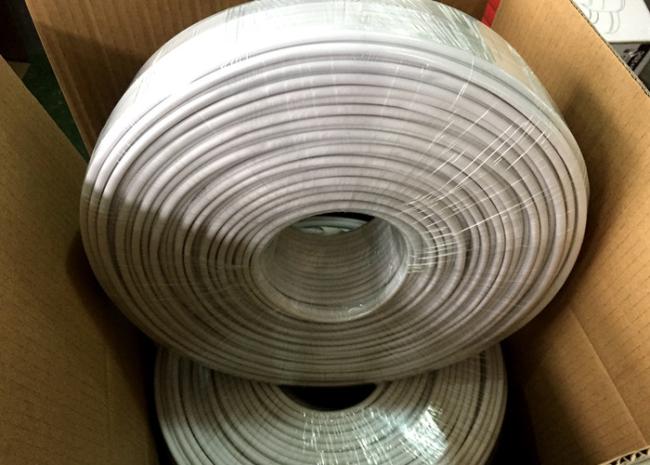

Packing: 305m/Roll
Note:
This is Type of coaxial cable with DC power wire can be used for CCTV security system. Both have video part and DC power part. Please check our details below carefully.
Coaxial part with 0.5BC inner conductoris, and power part use CCA material, can have a not high price to customers and be good accepted by global market. We will use all new PVC and PE as Jacket to make cable strong enough.
These material can make cables have a indoor working life more than 8 years. And can transfer video to 500 meter. Can guarantee video clear and not affected by environment.
As a responsible OEM manufacture, welcome to tell us what type and specs you need. Surely we can produce according to your requirements.
Details:
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 7X0.18 |
| Dielectric | SOLID PE Yellow | 2.4 |
| First Shield | Bonded AL Foil | without |
| Second Shield | CCA Braid | 90% |
| Outer Jacket | PVC WHITE | 6.1 |
| Power Wire Conductor | CCA | 26AWG |
| Power Wire Insulation | PVC | 0.8 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
| Sparker Test | 4000 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
