Outdoor UV PE Jacket Siamese Coax Cable PK-75-2-13 2x24x0.2mm CCA Power Wire
PK-75-2-13 Coaxial with Power and Steel CCTV Cable Outdoor UV PE Video Wire

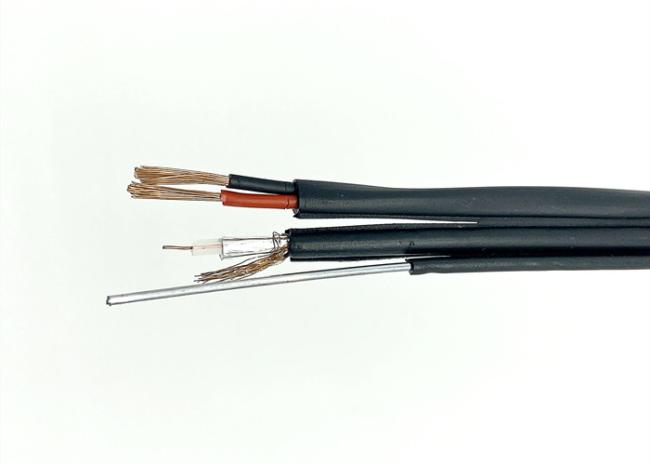

PK-75-2-13 Spec: 0.37mm Cu+2.2mm SPE+16x3x0.12mm CCA+3.7mm PVC+2Cx(24x0.2CCA)+1.2GS
PK-75-2-13 coax cable from Hangzhou Aite Cable Co.,Ltd. is a type of radio frequency(RF) PK-75-2-13 Coaxial with Power and Steel CCTV Cable is manufactured in a 0.37 Solid CU and has a 50 Ohm impedance. And with 0.75mm ² CCA DC Power Part.
PK-75-2-13 Coaxial with Power and Steel CCTV Cable is constructed with a 2.2 mm diameter and UV Resiatance Pe jacket. Also can produce use Pvc for indoor applications. And color can be customized.
PK-75-2-13 Coaxial with Power and Steel CCTV Cable is produced with a shield count of 48 net BC or CCA wire. There are two main functions of the PK-75-2-13 braiding. The first is as the outer conductor, to appear a circut with the inner conductor. Another is to protect the signal to transfer for long distance.
PK-75-2-13 Coaxial Cable is constructed with SOLID PE dielectric and a maximum operating temperature of 80 ℃.
We are the proffesional China factory to manufacturer PK-75-2-13 Coaxial Cable. And can export and ship cables worldwide.
| Coaxial | Construction | Material | Diameter(mm) |
| Inner Conductor | CU | 0.37 | |
| Dielectric | Solid PE | 2.2 | |
| First Shield | Bonded AL Foil | WITHOUT | |
| Second Shield | CCA Braid | 48 | |
| Outer Jacket | Pe | 3.7 | |
| Power Wire | Inner Conductor | CCA | 0.75MM² |
| Insulation | PE | 1.8 |
Electrical Characteristics
| Impedance (Ω) | 50±3 |
| Capacitance (pF/m) | 101±2 |
| Velocity of Propagation(﹪) | 66.0 |
| Conductor DCR(Ohm/km) | 318.2 |
| Outer Shield DCR(Ohm/km) | 35.1 |
| Max Operating Frequency(MHZ) | 1000.0 |
| Max Operating Voltage(RMS) | 1500.0 |
|
Operating Tem Range(℃) |
-40 to 85 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 10 | 3.3 | 10.8 |
| 50 | 6.1 | 20.0 |
| 100 | 7.8 | 21.0 |
| 200 | 13.0 | 42.5 |
| 400 | 16.9 | 55.6 |
| 600 | 21.0 | 68.8 |
| 860 | 26.2 | 86.1 |
| 1000 | 29.3 | 96.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
