SAT703B 1.13mm CU 75 Ohm Coaxial Cable Green Strips Line For Satellite SATV
SAT703B 1.13mm CU with Green Strips Line Coax Cable for Satellite SATV
RG Series SAT703 Coaxial cable
SAT703B Standard
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 1.13 |
| Dielectric | Foam PE | 4.8 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | AL Braid | 60% |
| Outer Jacket | PVC | 6.6 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |

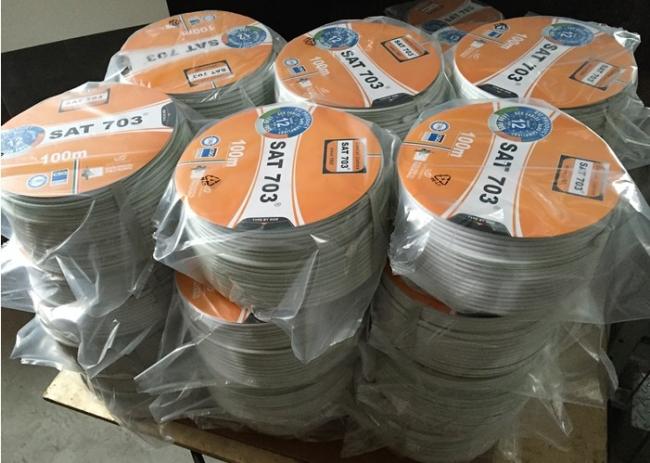

100m Heat Shrink Packing According to Client`s Requirement
Finished Loading the Container and Delivery to Port

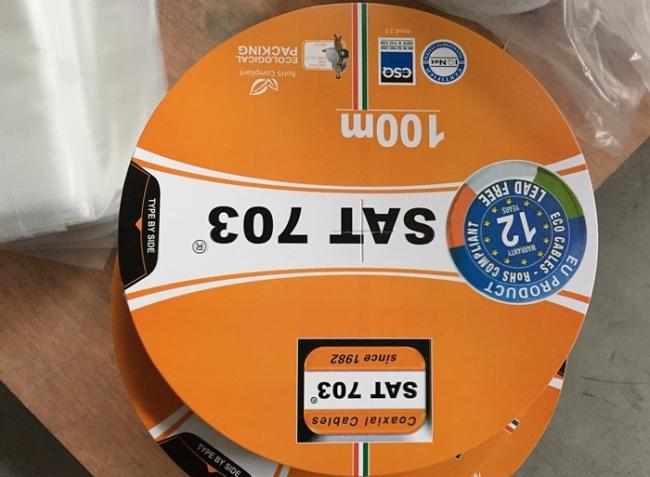

OEM Packing As Required
Testing
Cable Raw Material
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
