VR90 BNC Video Power Cable 3.7 Solid PE Insulation Golden Color Foil
VR90 BNC Video Wire 3.7 Solid PE Insulation Golden Color Foil
RG Series RG59/ VR90 CCTV Coaxial cable

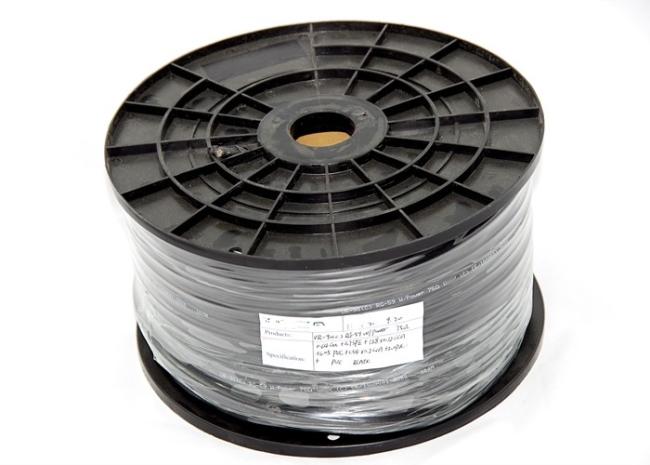

RG59 Standard: 0.65mm BC+3.7mm SPE+14#AL Bonded(Gold Color)+16x7x0.12mm CCA +6.0mm PVC 65°Packing: 100m/COIL
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 0.65 |
| Dielectric | Solid PE | 3.7 |
| First Shield | Bonded AL Foil | 14 |
| Second Shield | CCA Braid | 80% |
| Outer Jacket | PVC White/ Black | 6.0 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
| 3000 | 13.8 | 45.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
