RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

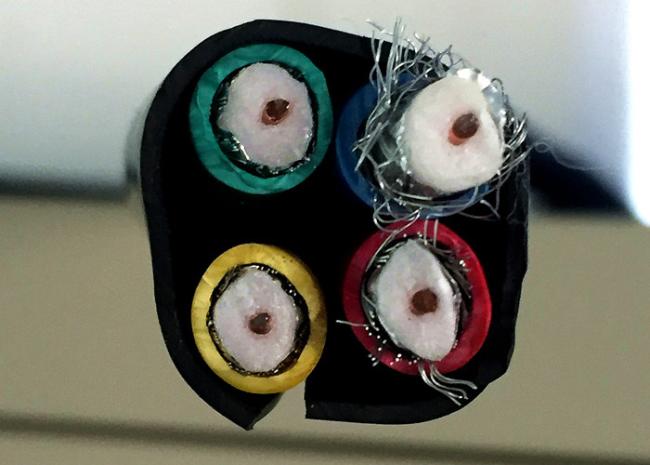

2RG6 Quad+2CAT5E 75 Ohm Coaxial Cable with Lan Cable CATV CCTV OEM Manufacturer

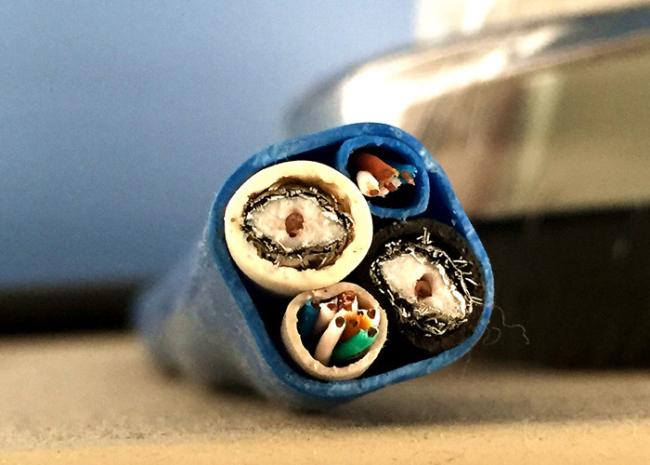

2RG6+2CAT5E Combo cable
2RG6 Standard
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 1.02 |
| Dielectric | Foam PE | 4.57 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | AL Braid | 48% |
| Third Shield | ||
| Outer Jacket | PVC | 6.9 |
2RG6 CAT5E
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 0.51/ 24AWG |
| Dielectric | Solid PE | 0.91 |
| First Shield | ||
| Second Shield | ||
| Third Shield | ||
| Outer Jacket | PVC | 5.1 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
