75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coax Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk

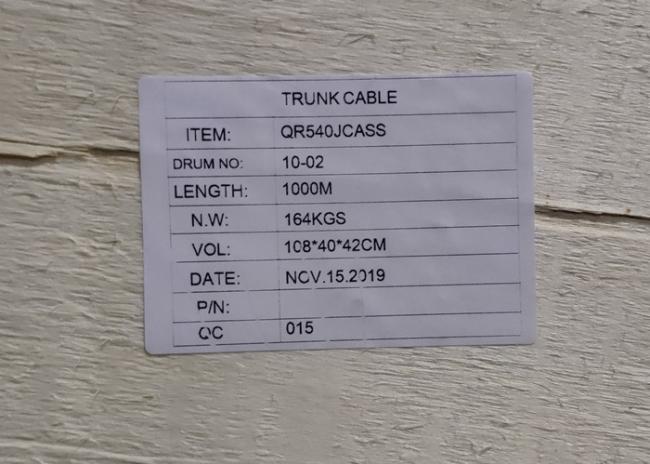

Coaxial cable QR540 Trunk AL Tube Coaxial
| Construction | ||
| Inner Conductor | Material | CCA |
| Diameter(mm) | 3.15 | |
| Dielectric | Material | Foam PE |
| Diameter(mm) | 13.05 | |
| Shield | Material | Solid AL Tube |
| Diameter(mm) | 13.72 | |
| Outer Jacket | Material | PE |
| Diameter(mm) | 15.49 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 87.0 |
| Return Loss | |
| 5-1000MHz(db) | ≥22 |
| Screening Effectiveness | |
| 5-1000MHz | ≥22 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100m) |
| 5 | 0.64 |
| 55 | 1.54 |
| 83 | 1.90 |
| 211 | 3.12 |
| 250 | 3.38 |
| 300 | 3.71 |
| 350 | 4.04 |
| 400 | 4.33 |
| 500 | 4.89 |
| 750 | 6.07 |
| 865 | 6.56 |
| 1000 | 7.12 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
