EFON MGXTW Outdoor Multimode Fiber Optic Cable With Special Tube Filling Compound
EFON MGXTW Outdoor Fiber Optic Cable with Special Tube Filling Compound
EFON MGXTW Uni-Tube Mining Flame-Retardant Optical Fiber Cable
Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of steel tape armor longitudinally. Between the steel tape armor and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a flame-retardant jacket.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Good mechanical and temperature performance. High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber. Special jacket material ensures excellent flame-retardant performance. Crush resistance and flexibility.
Steel tape armor enhancing moisture-proof.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and friendly installation.

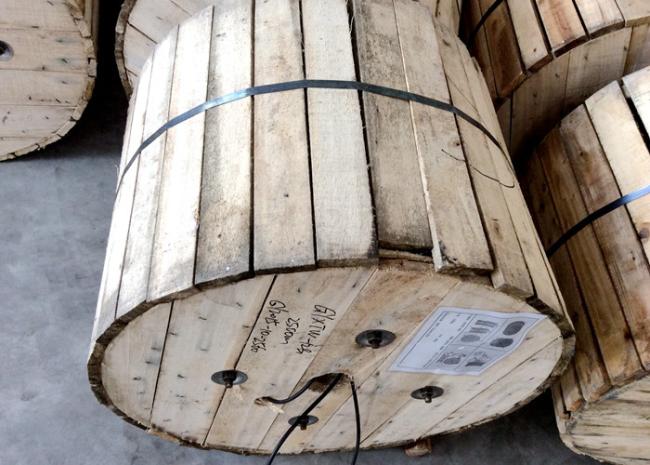

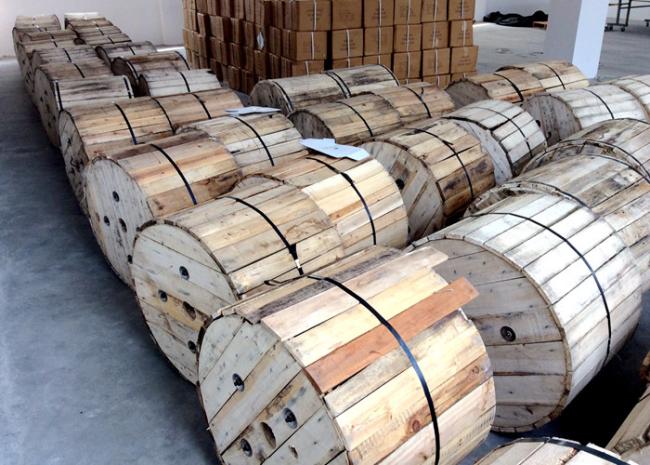

Long delivery length.
Standards
EFON MGXTW cable complies with Standard YD/T 769.
Optical Characteristics JET
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 172 | 3000 | 1000 | 3000 | 1000 |
| 14~24 | 8.5 | 215 | 3000 | 1000 | 3000 | 1000 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
