ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable
ADSS Mini-Span Outdoor Cable
All Dielectric Self-Supporting Aerial Cable
Description:
Mini-Span All-Dielectric Self-Supporting (ADSS) cable’s designed for outside plant aerial and duct applications in local and campus network loop architectures.From pole-to-build to town-town installations, the Mini-Span cabling system, which includes cables, suspension, dead end and termination enclosures, offers a comprehensive transmission circuit infrastructure with proven, high-reliability performance.
See EFON's Fiber Optic Cable Hardware catalog for more information. Mini-Span includes fiber counts up to 144 optical fibers and any type or combination of single-mode and multi-mode fibers with the cable. Pole-to-Pole span lengths range from 50 feet to over 650 feet(30-200meters).
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
Can be installed without shutting off the power.
Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m. Good performance of tensile strength and temperature. The design life span is over 30 years.
Optical Characteristics ADSS Mini Span
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||

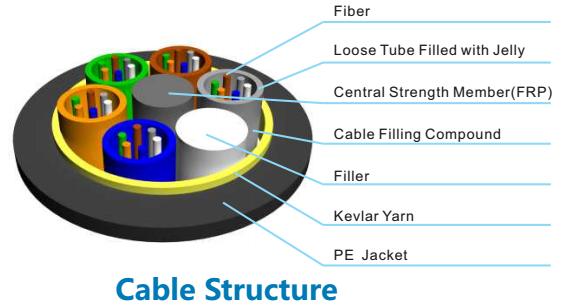

Structure and Technical Specifications
| Ref. Outer | Ref. Weight | Rec. Daily Max. | Max Allowable | Break | Strength | Modulus of | Heat | Suitable Span | ||||
| Diameter | (kg/km) | Working Tension | Working Tension | Strength | Member | Elasticity | Expansion | (NESC Standard,m) | ||||
| CSA | CSA | Coefficient | ||||||||||
| (mm) | PE Jacket | AT Jacket | (kN) | (kN) | (kN) | (mm²) | (kN/mm²) | (×10-6/K) | A | B | C | D |
| 11 | 110 | 120 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 11.5 | 115 | 125 | 22.5 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 12 | 120 | 130 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
