BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose
BOC Indoor Fiber Optic Cable use Simplex Subunit and FRP Strength Member
BOC Indoor Cable
BOC Multi Purpose Breakout Cable
Description

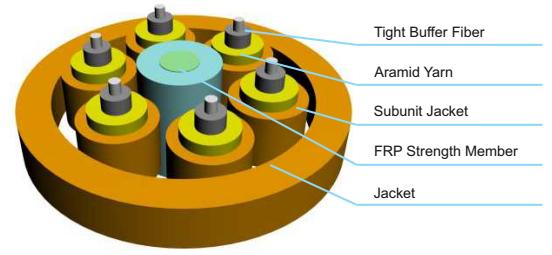

BOC Multi-Purpose Break-Out cable use simplex cable (Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Standards
Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc;
and PVC cable meet the requirements of UL approval OFNR; Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
Stranded non-metallic strength member structure ensure the cable ensure larger tensile strength.
The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength.
Applications
Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled Launch | Effective Modal | 10Gb/s Ethernet | Min Bending | |
| Bandwidth | Bandwidth | link length | Radius | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| BI-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| BI-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specifications
| Fiber | Cable | Cable Weight | Tensile Strength | Crush Resistance | |||
| Count | Diameter (mm) |
(kg/km) | (N/100mm) | (N/100mm) | |||
| PVC Jacket | LSZH Jacket | Short Term | Long Term | Short Term | Long Term | ||
| 4 | 7.4±0.5 | 50 | 56 | 440 | 130 | 1000 | 300 |
| 6 | 8.4±0.5 | 66 | 74 | 660 | 200 | 1000 | 300 |
| 8 | 9.8±0.5 | 91 | 101 | 660 | 200 | 1000 | 300 |
| 12 | 12.4±0.5 | 140 | 155 | 660 | 200 | 1000 | 300 |
| 18 | 12.4±0.5 | 140 | 155 | 1320 | 400 | 1000 | 300 |
| 24 | 14.4±0.5 | 181 | 201 | 1320 | 400 | 1000 | 300 |
| 36 | 16.4±0.5 | 208 | 255 | 1320 | 400 | 1000 | 300 |
| 48 | 19±0.5 | 280 | 344 | 1320 | 400 | 1000 | 300 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
