MFC≤24f Micro Multi Indoor Optic Cable Φ250µM Colored Fiber Wrapped
MFC≤24f Micro Indoor Optic Cable Use Φ250µm Colored Fiber Wrapped with a Layer of Aramid Yarn
MFC≤24f Indoor Cable
Micro Multi Fiber Indoor Cable
Description

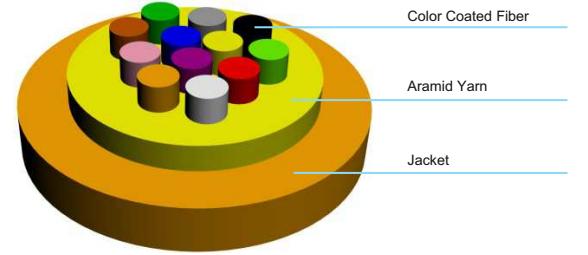

MFC Multi Fiber Indoor cable use several Φ250µm colored fiber as optical communication medium, the colored fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Standards
Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc; and PVC cable meet the requirements of UL approval OFNR and OFNP. Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
High-integrated colored bare fiber design.
Aramid yarn as strength member making cable have excellent tensile strength performance.
The outer jacket material has many advantages such as anti-corrosion, waterproof, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Applications
Indoor any purpose cable distribution.
Data center cable.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled Launch | Effective Modal | 10Gb/s Ethernet | Min Bending | |
| Bandwidth | Bandwidth | link length | Radius | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| BI-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| BI-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specifications
| Cable | Cable Weight(Ref) | Tensile Strength | ||
| Diameter | (kg/km) | (N/100mm) | ||
| (mm) | PVC Jacket | LSZH Jacket | Short Term | Long Term |
| 3.0±0.2 | 4.8 | 6.3 | 100 | 30 |
| 3.8±0.2 | 6.5 | 8.0 | 150 | 50 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
