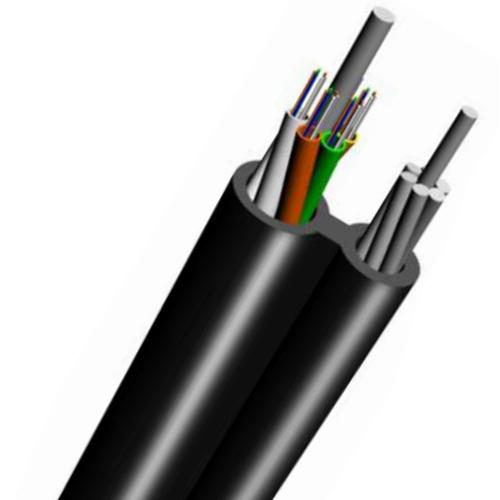

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
GYTC8Y Aerial Figure 8 Fiber Optic Cable for Backbone Access
GYTC8Y Outdoor Cable
Aerial Fig8 Armored Loose Tube Single Jacket/Single Armor Cable
Description
Aerial Fig8 Non-Armored Loose Tube cable is designed especially for aerial
installations. With fiber counts up to 288 and S-Z strand designs.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design.
Self-supporting Figure 8 design.
Applications
Aerial/Lashed.
Backbone. Access.
Option
FRP or Steel central strength member can be choosed.
Different size of steel strand wire can be choosed to reach different mid-span.
Dry core structure available for ease of handling.
Flame-retardant jacket can be provided.
Optical Characteristics GYTS
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||

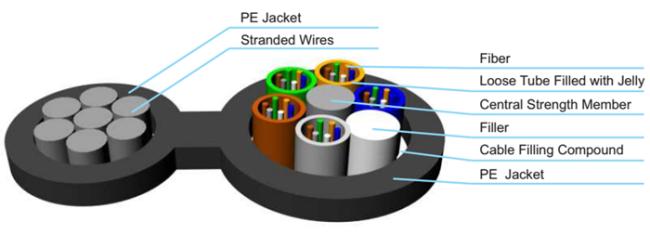

Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.4x17.4 | 180 | 6 | 6 | 4000 | 2000 | 1000 | 300 |
| 32~36 | 10.0x18.0 | 180 | 12 | 6 | 4000 | 2000 | 1000 | 300 |
| 38~60 | 10.6x18.6 | 180 | 12 | 8 | 4000 | 2000 | 1000 | 300 |
| 62~72 | 10.9x19.0 | 215 | 12 | 10 | 4000 | 2000 | 1000 | 300 |
| ＞72 | Available upon customer·s request | 4000 | 2000 | 1000 | 300 | |||
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
