18AWG Shielded Fire Alarm Cable FPLR-CL2R Solid Bare Copper UL Standard
Fire Resistant Alarm Cables 18AWG FPLR-CL2R Solid Bare Copper UL Standard
| Fire Alarm Cables 18AWG FPLR-CL2R | |||||||
| AT1422 | Power Limited Multiple donductor | ||||||
| Application | |||||||
| Indoor for: | |||||||
| Audio Circuits | |||||||
| Control Circuits | |||||||
| Initiating Circuits | |||||||
| Notification Circuits | |||||||
| Properties | |||||||
| Temperature Rating: '-20 to 75℃ | |||||||
| Operating Voltage: 300 Volts max. | |||||||
| Flame Rating: UL 1666(Riser),C(UL)FT4 | |||||||
| Insulation & Jacket: PVC | |||||||
| Unshielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 18 AWG | 0.006" | 0.015" | 0.136" | 21 | 75 | 6.5 |
| 4 | 18 AWG | 0.006" | 0.015" | 0.174" | 21 | 75 | 6.5 |
| 6 | 18 AWG | 0.006" | 0.015" | 0.187" | 21 | 75 | 6.5 |
| 10 | 18 AWG | 0.006" | 0.015" | 0.244" | 18 | 75 | 6.5 |
| Shielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 18 AWG | 0.006" | 0.015" | 0.138" | 42 | 36 | 6.5 |
| 4 | 18 AWG | 0.006" | 0.015" | 0.163" | 42 | 36 | 6.5 |
| 6 | 18 AWG | 0.006" | 0.015" | 0.196" | 42 | 36 | 6.5 |
| 8 | 18 AWG | 0.006" | 0.015" | 0.212" | 42 | 36 | 6.5 |
| Drain Wire | 22 AWG Solid Tinned-Copper | ||||||
| Shield | 0.001" thick Aluminum/Mylar | ||||||
| Color | |||||||
| Number | Description | ||||||
| 4 | Blk,Red,Ylw,Grn | ||||||
| 6 | Blk,Red,Ylw,Grn,Brn,Blu | ||||||
| 8 | Blk,Red,Ylw,Grn,Brn,Blu,Ppl,Pnk | ||||||
| 10 | Blk,Red,Ylw,Grn,Brn,Blu,Ppl,Pnk,Tan,Org | ||||||
| Order Informations: | |||||||
| AITE AT1422 ×C18 E×××××××(UL) FPLR OR CL2R C(UL)US FT4 SUN RES(ROHS) ××××FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | |||||||

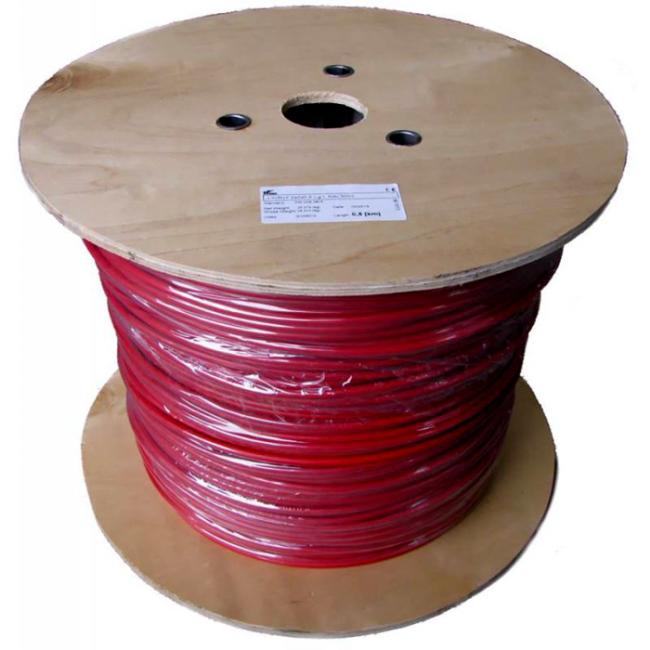

| Packing | 1000FT/Pull Box, 1000FT/Spool, Pallet | ||||||
