BNC Male to BNC Double Female Splitter / BNC Male to 2 BNC Female Connector

Description:

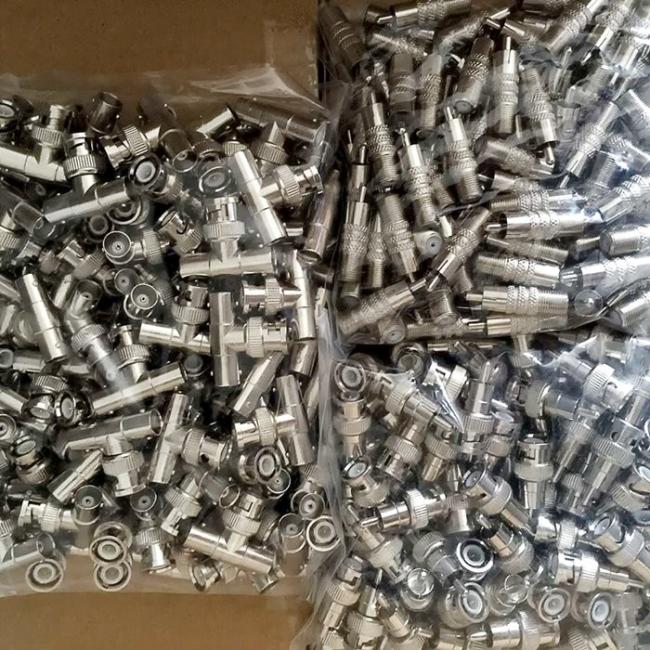

BNC Male to BNC Double Female Splitter

BNC Male to Two BNC Female Connector

Male to Female RF Connectors

T Type One Male to Two Female

Material:

Body—zinc alloy, nickel plated

Center pin—copper, gold plated

Net Weight: 14g/piece

Features:

Temperature range: - 40~ +155

Insulation resistance: ≥5000MΩ

Character impedance: 50Ω

Frequency range: 0~3GHZ

Disengage force: ≥0.6N

Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ

Durability: ≥ 500

Application:

The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable.

It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut.

BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).

We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
