RG59U CCTV Coaxial Cable Connector BNC Male Crimp On With Long Boot
CCTV BNC Male Crimp On Connector with Long Boot for RG59 Cable
Description:

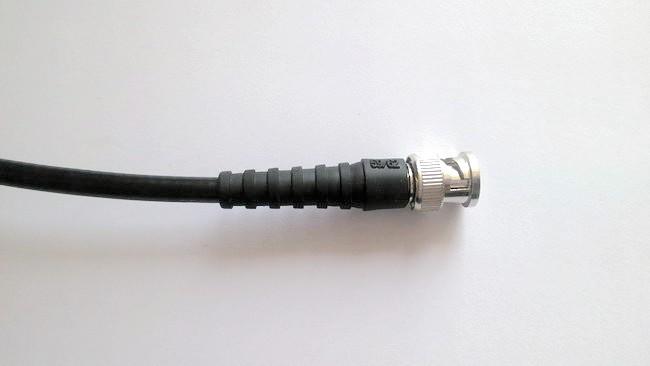

BNC Male Crimp On Connector with Long Boot for RG59U Cable
Captive center-pin design
Two-step ferrule with strain relief crimp
Material:
Body-zinc alloy, nickel plated
Ring-copper, nickel plated
Center pin-copper, gold plated

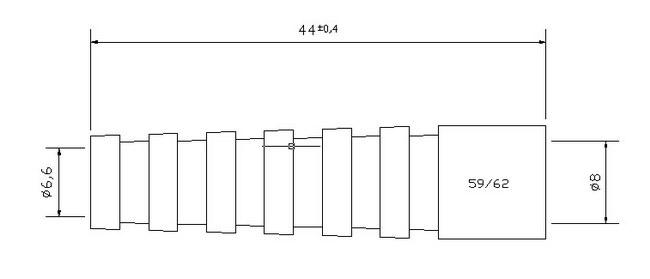

Boot¬-rubber
Net Weight: 10g/piece
Features:
| CCTV BNC Male Crimp on Connector with Long Boot (CT5015) | |
| Connectors | Terminal block, Female BNC |
| Material | Zinc Alloy + copper + rubber |
| Temperature range | - 40~ +155 degrees |
| Insulation resistance | ≥5000MΩ |
| Character impedance | BNC-50Ω; Terminal block-100Ω |
| Frequency range | 0~3GHZ |
| Disengage force | ≥0.6N |
| Contact resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Size | 42*15.5*15.5mm |
| Net Weight | 10g/piece |
Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
