Nickel Plated Twist On Coax Connector 18mm For RG59 RG6(5C-FB) CATV Adaptor
Nickel Plated Twist On F Coaxial Connector 18mm for RG59 RG6(5C-FB) CATV Adaptor
F Male Twist-On Connector / Adapter
Description:

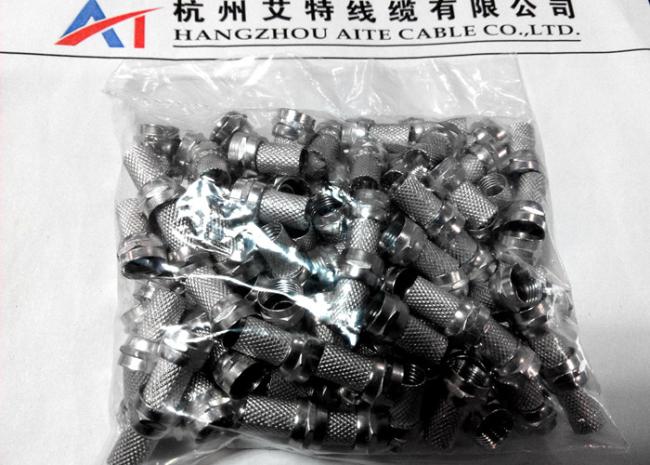

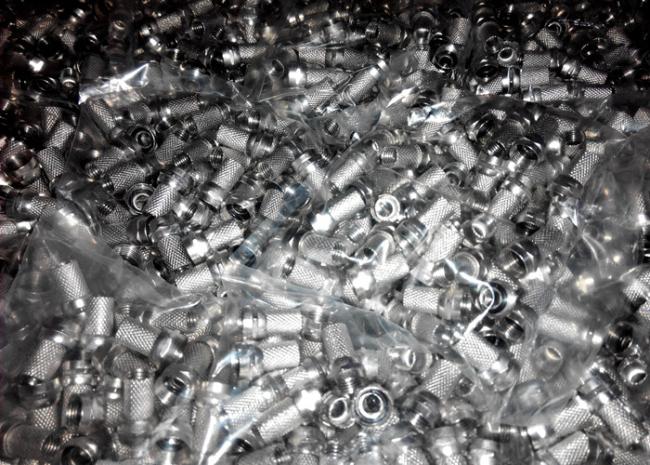

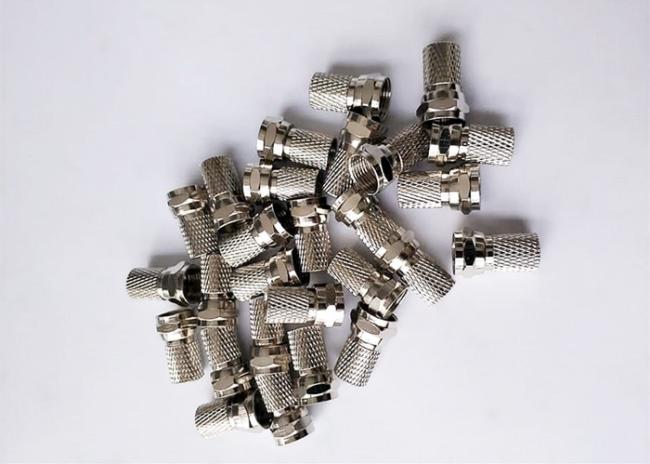

F Male Twist-On Connector
Twist-on connectors are placed on the stripped cable and finger tightened.
Material:
Body—zinc alloy, nickel plated
Net Weight: 3g/piece
Application:
The F connector is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and
universally for satellite television and cable modems, usually with RG-6/U cable or, in older installations, with RG-59/U cable.
The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz and has usable bandwidth up to several
GHz. Most male connectors have a matching threaded connecting ring, though push-on versions are also available.
Push-on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV transmitter will interfere with
a CATV station).
Keywords: F Male Twist On Connector, F Male Twist On Adapter, F Connector for RG6, F Connector, CCTV Connector, cable
connector, coaxial connector, F-Connectors, F adapter, F adaptor, F plug RG6, connector,
Electronical Specifications:
| Standard Cross Reference | RCZ-6015 |
|---|---|
| Voltage Rating | AC 150V |
| With Standing Voltage | AC 500V One Minute |
| Insulation Resistance | 500M Ω Minute DC 500V |
| Contace Resistance | 50 M Ω AT DC 1A |
| Impedance | 75Ω |
| VSWR | 1.2Max 0-1500MHz |
F-TYPE Connectors are of low price and develop for NTSC TV Antenna etc.
Refined Zinc Alloy
Long Type: Length 20mm
Short Type: Length 17mm
(A)RG-58/U
(B)RG-59/U
(C)RG-6/U
