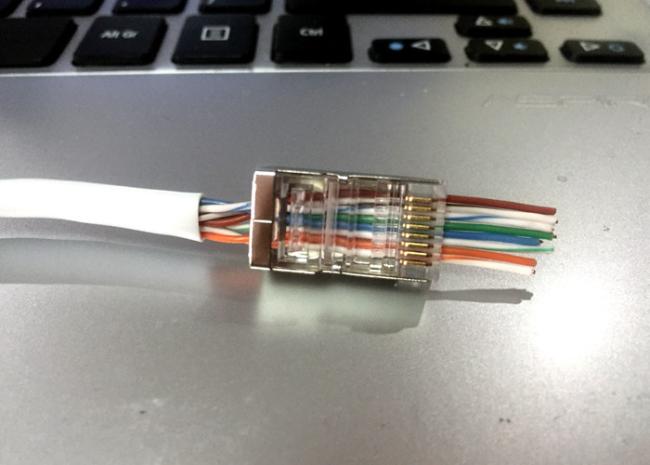

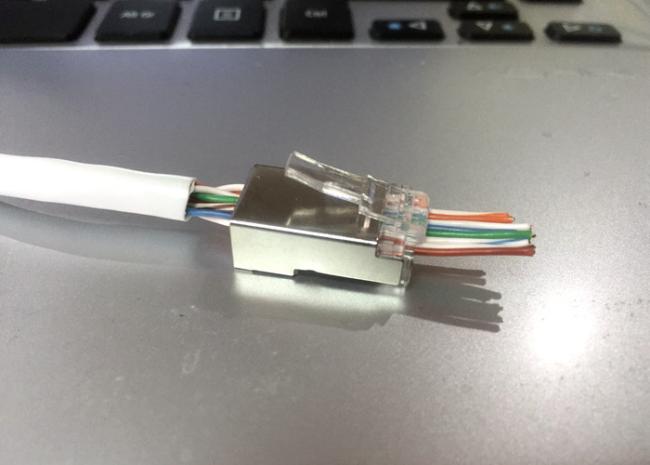

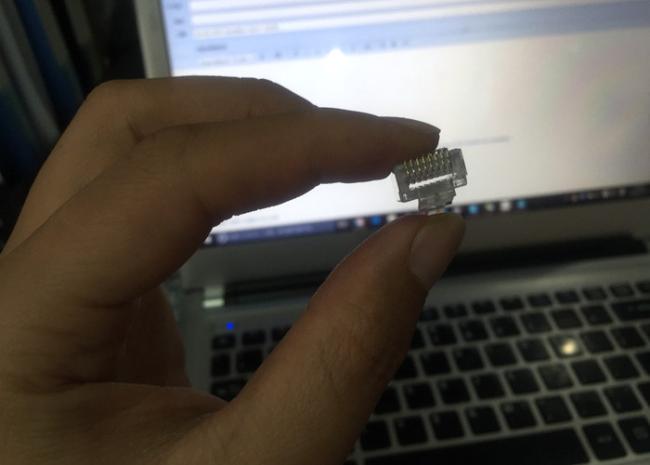

​Shielded RJ45 Modular Plug with a Hole FTP CAT5E 3U Gold Plated 8P8C Ethernet Connector

A Brief Introduction of Testing

UL E241512, complies with FCC Part 68 subpart of standards, plugs available for standed or solid wire 24-26 AWG.

Inspection for Environment Protection:

A. Passed the European "ROHS" safety standard test Report No.: 2040076/EC

B. Test Method

Lead content with reference to EPA method 3050B: 1996

Cadmium content-with reference to BS EN1122:2001 method B

Mercury content-with reface to EPA 3052:1996

Hexabalent chromiu content-with reference to EPA3060A & EPA7196A

Analysis was performed by atomic absorption spectrometer and inductively coupled plasma

atomic emission spectrometer(ICP-AES) UV-VIS spectrophotometer.

Electrical Test:

A. 250V AC max. at 2 amps.

B. Dielectric with standing 500 Volts AC.

C. Insulation Resistance: 500 mega ohms.

D. Termination Resistance: 35 mega ohms.

Goldplate Inspection:

Per MIL-G-45204C, TYPE Ⅱ(99% pure gold minimum) Grade C+(knoop hardness range 130-250) class Ⅰ(50 micro inches minimum thickness)

Mechanical:

A. Gadle-to-plug tensile strength-20LBS(89N) min.

B. Durability: 2000 mating cycles.

Material & Finish:

A. Housing material: Poly carbonate 94V-0&-94V-2(UL No. E50075)

B. Contact blade: Phosphor Bronze High strength oopper alloy JIS C519R-H(PBR-2)

C. 100 micro inches nichel under plated & gold selected

Operating Temprature: -40℃-+125℃
