Orange PVC UTP Bulk CAT6 Ethernet Cable 23AWG 4 Pairs Unshielded Twisted Wire
Orange PVC UTP Bulk CAT6 Ethernet Cable 23AWG 4 Pairs Unshielded Twisted Wire
| Lan Cable UTP CAT6 | |||||
|
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring |
|||||
| Basic Construction | Material | Diameter (mm) | |||
| Conductor | BC | 23AWG | |||
| Insulation | PE | 1.02 | |||
| Jacket | PVC | 6.1 | |||
| BASIC CHARACTERISTICS | |||||
| Temperature Rating | -20℃ to 60℃ | ||||
| Dielectric Breakdown | 2500V | ||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
| Characteristics Impedance | 100Ω | ||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
| (dB/100m) | (dB/100m) | ||||
| 0.77 | 1.8 | NA | 70 | 69 | |
| 1 | 2 | 20 | 68.3 | 66.8 | |
| 4 | 4 | 23 | 59.3 | 54.7 | |
| 8 | 5.8 | 24.5 | 54.8 | 48.7 | |
| 10 | 6.5 | 25 | 53.3 | 46.8 | |
| 16 | 8.2 | 25 | 50.3 | 42.9 | |
| 20 | 9.2 | 25 | 48.8 | 40.7 | |
| 25 | 10.4 | 24.3 | 47.3 | 38.8 | |
| 31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
| 62.5 | 17 | 21.5 | 41.4 | 30.8 | |
| 100 | 22 | 20.1 | 38.3 | 26.8 | |
| 155 | 28.1 | 18.8 | 35.5 | 22.9 | |
| 200 | 32.4 | 18 | 33.8 | 20.7 | |
| 300 | 41 | 16.8 | 32.3 | 17.2 | |
| 350 | 44.9 | 16.3 | 30.2 | 15.9 | |

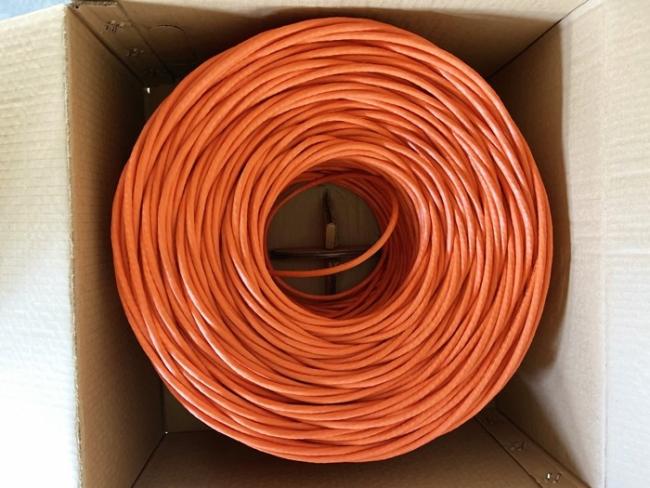

Networking Cables 305M Pull Box Packing for Exporting

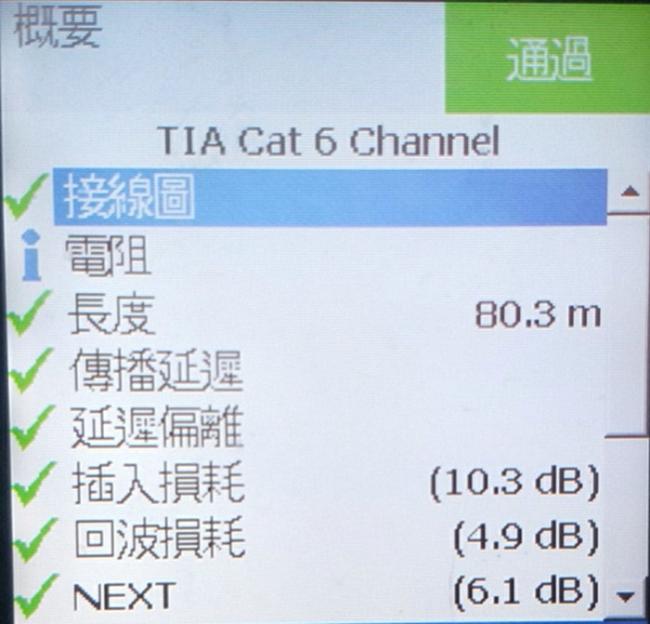

4P 0.51CU FLUKE TEST PASSED
NETWORKING PRODUCTION LINE
|
Standard (Name)
|
Maximum Bandwidth |
Maximum Distance |
Maximum Data Rate | Notes |
| Categary 5e | 100MHz | 100Meters | 1Gbps |
Still commonly used
|
| Category 6 | 250MHz | 100Meters | 1Gbps,10Gbps(limited distance) | Used in new buildings |
| Category 6a | 500MHz | 100Meters | 10Gbps |
Data centres and commercial
|
| Category 7 | 600MHz | 10Gbps |
Fully shielded components. Non modular connectors
|
|
| Category 7a | 1000MHz | 10Gbps |
fully shielded solution
|
|
| Category 8 | 1600-2000MHz | 40Gbps |
in development |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
