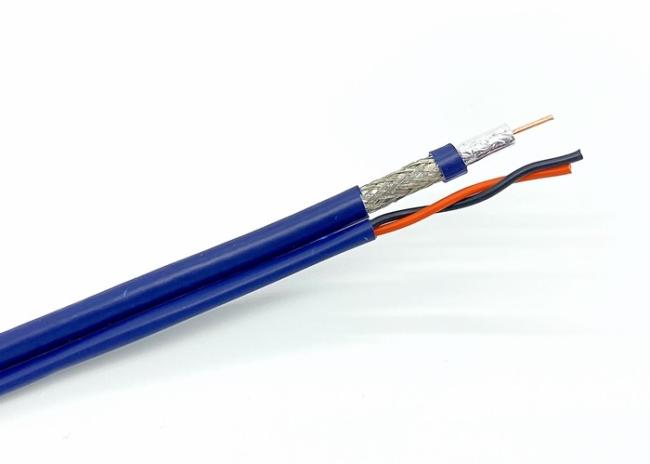

RG6+2x0.75MM2 Power Complex Siamese Coax Cable Blue PVC Outer Jacket
RG Series RG6 CCTV Coaxial cable
RG59 Standard: 1.1mm BC+4.7mm FPE+16x8x0.12mm TCCA +7.0mm PVC+18AWG CCA Power Wire 65° Packing: 305m/Roll

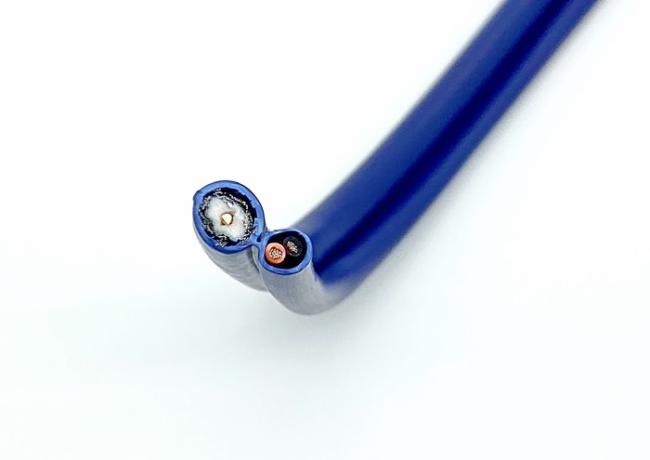

| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 1.1 |
| Dielectric | Foam PE | 4.7 |
| First Shield | Bonded AL Foil | 18# |
| Second Shield | TCCA Braid | 90% |
| Outer Jacket | PVC Blue | 7.0 |
| Power Wire Conductor | CCA | 18AWG |
| Power Wire Insulation | PVC | 1.9 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
| Sparker Test | 4000 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
