RG58A/U RF Feeder Cable , 50 Ohm Wire Copper Braid Solid PE OFC Conector For GPS
RG58 50 Ohm Coaxial Cable Tinned or Bare Copper Conductor Antenna Wire
RG Series Coaxial cable

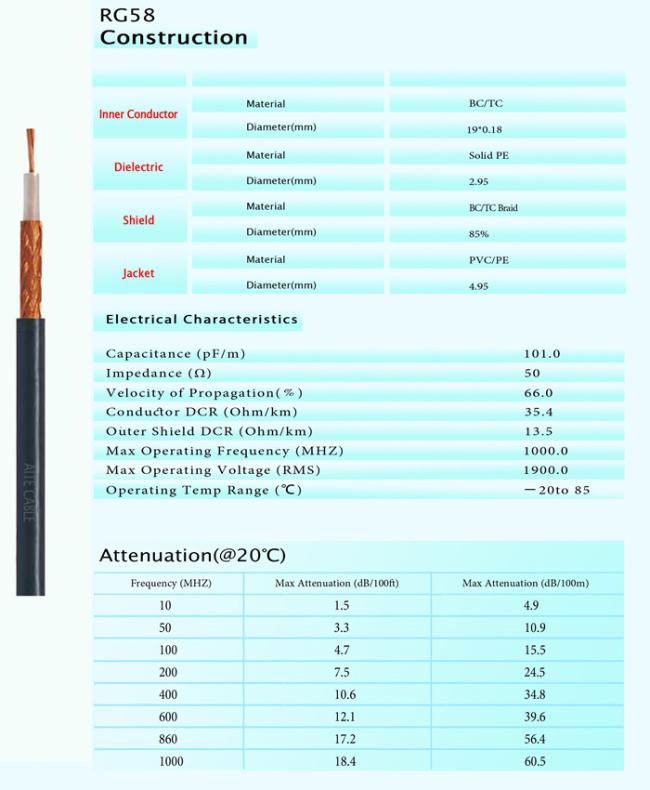

RG58: 19/0.18mm Cu+2.95mm SPE+TC Braid(85%)+4.95mm PVC
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC/TC | 0.18*19 |
| Dielectric | Solid PE | 2.95 |
| First Shield | Bonded AL Foil | WITHOUT |
| Second Shield | BC/TC Braild | 85% |
| Outer Jacket | PVC | 4.95 |
Electrical Characteristics
| Impedance (Ω) | 50±3 |
| Capacitance (pF/m) | 66.0 |
| Velocity of Propagation(﹪) | 83.0 |
| Conductor DCR(Ohm/km) | 13.5 |
| Outer Shield DCR(Ohm/km) | 35.1 |
| Max Operating Frequency(MHZ) | 1000.0 |
| Max Operating Voltage(RMS) | 1900.0 |
|
Operating Tem Range(℃) |
-20 to 85 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 10 | 1.5 | 4.9 |
| 50 | 3.3 | 10.9 |
| 100 | 4.7 | 15.5 |
| 200 | 7.5 | 24.5 |
| 400 | 10.6 | 34.8 |
| 600 | 12.1 | 39.6 |
| 860 | 17.2 | 56.4 |
| 1000 | 18.4 | 60.5 |
RG series
| TYPE | Conductor | Insulation | Braid Shield | Jacket |
Nom. Imped Ohm |
Nom. Capa. pF/m |
Attenuation 100MHz db/Km |
|||||
| No./mm | MTRL |
O.D mm |
MTRL | FIRST No./mm |
SECOND No./mm |
MTRL |
O.D mm |
MTRL | ||||
| RG-6/U | 1/1.02 | BC | 4.57 | FPE | AF | 95% | TC | 6.9 | PVC | 75 | 55 | 94 |
| RG-8/U | 7/0.9 | BC | 7.24 | FPE | 95% | - | BC | 10.3 | PVC | 52 | 85 | 64 |
| RG-8/U | 7/0.724 | BC | 7.24 | PE | 95% | - | BC | 10.3 | PVC | 52 | 97 | 70 |
| RG-8/X | 19/0.287 | BC | 3.94 | FPE | 95% | - | BC | 6.15 | PVC | 52 | 85 | 121 |
| RG-11/U | 1/1.63 | BC | 7.24 | FPE | DF | 75% | TC | 10.3 | PVC | 75 | 57 | 49 |
| RG-14/U | 1/2.591 | BC | 9.4 | PE | 97% | 97% | BCBC | 13.8 | PVC | 52 | 97 | 50 |
| RG-58/U | 1/0.8 | BC | 2.9 | PE | 95% | - | TC | 5.0 | PVC | 50 | 94 | 140 |
| RG-58A /U | 19/0.203 | TC | 2.9 | FPE | AF | 97% | TC | 5.03 | PVC | 50 | 86 | 131 |
| RG-58A /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | PVC | 50 | 102 | 160 |
| RG-58C /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | NC-PVC | 50 | 102 | 160 |
| RG-59/U | 7/0.254 | BC | 3.71 | FPE | 95% | - | BC | 6.15 | PVC | 75 | 57 | 98 |
| RG-59/U | 1/0.81 | BC | 3.71 | FPE | AF | 85% | BC | 6.15 | PVC | 75 | 57 | 98 |
| RG-59/U | 1/0.643 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | PVC | 73 | 69 | 120 |
| RG-59A /U | 17/0.16 | BC | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 73 | 69 | 120 |
| RG-59B/U | 1/0.584 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 75 | 67 | 120 |
| RG-62/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | PVC | 93 | 44 | 83 |
| RG-62A /U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 83 |
| RG-62B/U | 7/0.203 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 100 |
| RG-71B/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | 95% | TCTC | 6.22 | PE | 93 | 44 | 84 |
| RG-174/U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | PVC | 50 | 100 | 260 |
| RG-174A /U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | NC-PVC | 50 | 100 | 260 |
| RG-212/U | 1/1.412 | SC | 4.7 | PE | 97% | 97% | SCSC | 8.4 | NC-PVC | 50 | 98 | 87 |
| RG-213/U | 7/0.752 | BC | 7.24 | PE | 95% | - | BC | 10.3 | NC-PVC | 50 | 98 | 70 |
| RG-214/U | 7/0.752 | SC | 7.24 | PE | 97% | 97% | SCSC | 10.8 | NC-PVC | 50 | 98 | 67 |
| RG-216/U | 7/0.404 | TC | 7.24 | PE | 97% | 97% | BCBC | 10.8 | PVC | 75 | 67 | 72 |
| RG-223/U | 1/0.90 | SC | 2.9 | PE | 97% | 97% | SCSC | 5.3 | NC-PVC | 50 | 98 | 120 |
