GYXTW 4B1+2C 1.5MM2 multi-one network Electric Composite Fiber Optic Cable

Armored Loose Tube Single Jacket/ Single Armore Cable

Temprature Range

Operating: -40℃ to +70℃

Storage:-50℃ to +70℃

Installation: -50℃ to +70℃

Bending Radius:

Static: 10D

Dynamic: 20D

Description:

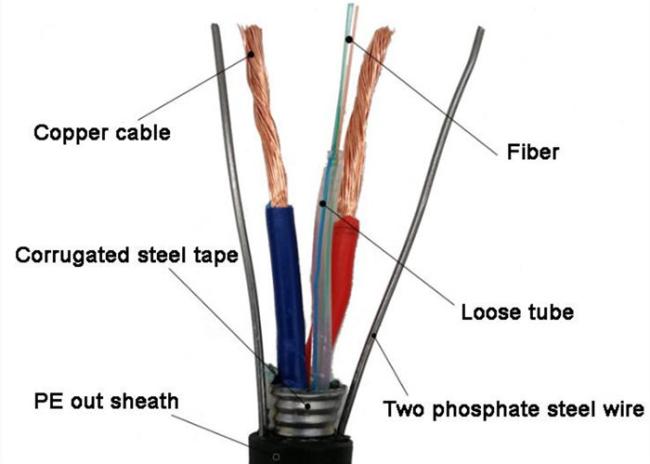

Armored fiber optic cable with fibers placed in loose buffer tube stranded around central strength member. The cable core is protected with jelly to prevent water intrusion and migration. With a corrugated steel tape armor which provides rigid protection, rodent resistance and cover with a black Polyethylene outer jacket.

Features:

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tabe armor to protect cable from mechanical damage and rodant protection. UV and moisture-resistant design.

Opto and electricity integrated, fully save pipeline resources

Electric and optical cable maintain relatively independent structure, easy to import, export and link when installation.

Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs.

Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.

Larger oprating temprature range and constructure temprature range.

Applications:

Backbones and Access.

Installed in ducts, underground conduits and direct burial.

Structure and Technical Specifications                                                                 GYXTW(2-24F)

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
