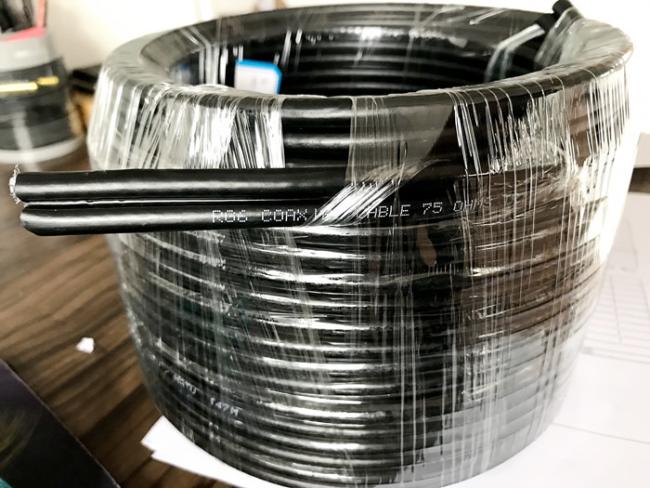

Dual RG6 Tri Shield 18AWG 75 Ohm Coaxial Cable Bulk Siamese CATV SATV Wire
Dual RG6 Tri Shield 75 Ohm Coaxial Cable 18AWG CATV Telecom Wire
RG Series Coaxial cable
RG6 Standard
| Construction | Material | Diameter(mm) |
| Inner Conductor | CCS | 1.02 |
| Dielectric | Foam PE | 4.57 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | AL MG WIRE Braid | 60% |
| THIRD Shield | AL Foil | |
| Outer Jacket | PVC | 6.91 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
| TYPE | Conductor | Insulation | Braid Shield | Jacket |
Nom. Imped Ohm |
Nom. Capa. pF/m |
Attenuation 100MHz db/Km |
|||||
| No./mm | MTRL | mm | MTRL | No./mm | No./mm | MTRL |
O.D mm |
MTRL | ||||
| RG-6/U | 1/1.02 | BC | 4.57 | FPE | AF | 95% | TC | 6.9 | PVC | 75 | 55 | 94 |
| RG-8/U | 7/0.9 | BC | 7.24 | FPE | 95% | - | BC | 10.3 | PVC | 52 | 85 | 64 |
| RG-8/U | 7/0.724 | BC | 7.24 | PE | 95% | - | BC | 10.3 | PVC | 52 | 97 | 70 |
| RG-8/X | 19/0.287 | BC | 3.94 | FPE | 95% | - | BC | 6.15 | PVC | 52 | 85 | 121 |
| RG-11/U | 1/1.63 | BC | 7.24 | FPE | DF | 75% | TC | 10.3 | PVC | 75 | 57 | 49 |
| RG-14/U | 1/2.591 | BC | 9.4 | PE | 97% | 97% | BCBC | 13.8 | PVC | 52 | 97 | 50 |
| RG-58/U | 1/0.8 | BC | 2.9 | PE | 95% | - | TC | 5.0 | PVC | 50 | 94 | 140 |
| RG-58A /U | 19/0.203 | TC | 2.9 | FPE | AF | 97% | TC | 5.03 | PVC | 50 | 86 | 131 |
| RG-58A /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | PVC | 50 | 102 | 160 |
| RG-58C /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | NC-PVC | 50 | 102 | 160 |
| RG-59/U | 7/0.254 | BC | 3.71 | FPE | 95% | - | BC | 6.15 | PVC | 75 | 57 | 98 |
| RG-59/U | 1/0.81 | BC | 3.71 | FPE | AF | 85% | BC | 6.15 | PVC | 75 | 57 | 98 |
| RG-59/U | 1/0.643 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | PVC | 73 | 69 | 120 |
| RG-59A /U | 17/0.16 | BC | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 73 | 69 | 120 |
| RG-59B/U | 1/0.584 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 75 | 67 | 120 |
| RG-62/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | PVC | 93 | 44 | 83 |
| RG-62A /U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 83 |
| RG-62B/U | 7/0.203 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 100 |
| RG-71B/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | 95% | TCTC | 6.22 | PE | 93 | 44 | 84 |
| RG-174/U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | PVC | 50 | 100 | 260 |
| RG-174A /U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | NC-PVC | 50 | 100 | 260 |
| RG-212/U | 1/1.412 | SC | 4.7 | PE | 97% | 97% | SCSC | 8.4 | NC-PVC | 50 | 98 | 87 |
| RG-213/U | 7/0.752 | BC | 7.24 | PE | 95% | - | BC | 10.3 | NC-PVC | 50 | 98 | 70 |
| RG-214/U | 7/0.752 | SC | 7.24 | PE | 97% | 97% | SCSC | 10.8 | NC-PVC | 50 | 98 | 67 |
| RG-216/U | 7/0.404 | TC | 7.24 | PE | 97% | 97% | BCBC | 10.8 | PVC | 75 | 67 | 72 |
| RG-223/U | 1/0.90 | SC | 2.9 | PE | 97% | 97% | SCSC | 5.3 | NC-PVC | 50 | 98 | 120 |
