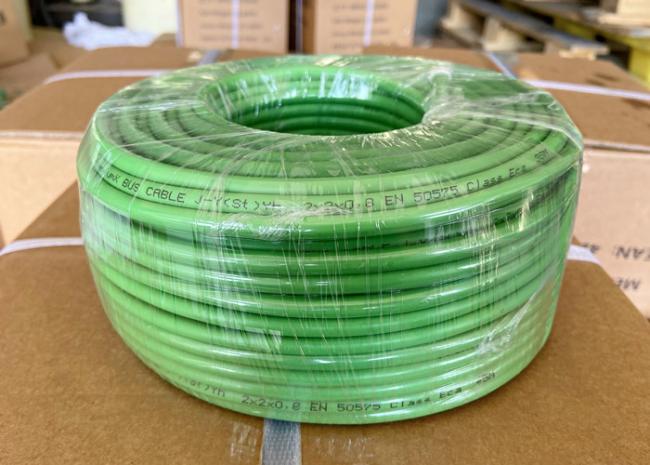

2x2x0.8 Copper Can Bus 80V Data Communication Cable for electric and electronics Control
2x2x0.8 Can Bus Data Communication Cable use for electric and electronics Control
Product description
Application: CAN bus is used to many fields of distributed multiprocessor control mode, such as automotive engine's control parts of automation electron field, sensor, skid resistance system's controller area network.
CAN's bit rate up to 1mbps, meanwhile it can cheaply used to transport vehicle electric system.
Feature: CAN bus make use of two wire serial communication, with strong error detection ability, can operation under high noise and interference environment; during low-speed and transmit at 5Kbit/s, the distance is up to 10KM, CAN also function as bus access priority and arbitration, the reliability and realtime are higher than ordinary communication technology
Basic Construction
| 2C | 3C | 4C | 5C | ||
| Conductor | Material | BC | |||
| Nom.Dia | 18/20/22/24AWG | ||||
| Dielectric | Material | PE | |||
| Nom.Dia | 1.0-1.45MM | ||||
| Shield | Material | Optional/AL Foil/Braiding | |||
| Coverage | |||||
| Jacket | Material | PVC | |||
| Nom.Dia | 3.76MM | 3.81MM | 4.40MM | 4.80MM | |
BASIC CHARACTERISTICS
| Temperature Rating | -20℃ to 60℃ |
| Operating Voltage | 150V |
| DC Resistance per Conductor@ 20℃ | 6.32 Ohms/1M’Nom |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
