PVC PE Double Sheath SFTP Bulk CAT6 Ethernet Cable 1000ft
Outdoor Double Sheath PVC+PE Bulk SFTP CAT6 Ethernet Cable Double shield CCTV Cable
| Basic Construction | Material | Diameter (mm) | |||
| Conductor | BC | 23AWG | |||
| Insulation | PE | 1.04 | |||
| Pairs | 4Pairs | ||||
| First Shield | AL Foil | ||||
| Second Shield | CCA/AL Braiding | 64/80/96*0.12 | |||
| First Jacket | PVC | 6.3 | |||
| Second Jacket | PE | 7.5 | |||
| BASIC CHARACTERISTICS | |||||
| Temperature Rating | -20℃ to 60℃ | ||||
| Dielectric Breakdown | 2500V | ||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
| Characteristics Impedance | 100Ω | ||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
| (dB/100m) | (dB/100m) | ||||
| 1 | 2 | 20 | 75.3 | 63.8 | |
| 4 | 3.8 | 23 | 66.3 | 51.7 | |
| 8 | 5.3 | 24.5 | 61.8 | 45.7 | |
| 10 | 6 | 25 | 60.3 | 42.8 | |
| 16 | 7.6 | 25 | 55.8 | 37.7 | |
| 20 | 8.5 | 25 | 55.8 | 37.7 | |
| 25 | 9.5 | 24.3 | 54.3 | 35.8 | |
| 31.25 | 10.7 | 23.6 | 52.9 | 33.9 | |
| 62.5 | 15.4 | 21.5 | 48.4 | 30 | |
| 100 | 19.8 | 20.1 | 45.3 | 29 | |
| 155 | 25.2 | 18.8 | 42.4 | 28.1 | |
| 200 | 29 | 18 | 40.8 | 27.8 | |
| 250 | 32.9 | 17.3 | 39.3 | 23.8 | |
| 400 | 40.8 | 16.9 | 39.3 | 18.8 |
|
|
Standard (Name)
|
Maximum Bandwidth |
Maximum Distance |
Maximum Data Rate | Notes |
| Categary 5e | 100MHz | 100Meters | 1Gbps |
Still commonly used
|
| Category 6 | 250MHz | 100Meters | 1Gbps,10Gbps(limited distance) | Used in new buildings |
| Category 6a | 500MHz | 100Meters | 10Gbps |
Data centres and commercial
|
| Category 7 | 600MHz | 10Gbps |
Fully shielded components. Non modular connectors
|
|
| Category 7a | 1000MHz | 10Gbps |
fully shielded solution
|
|
| Category 8 | 1600-2000MHz | 40Gbps |
in development
|

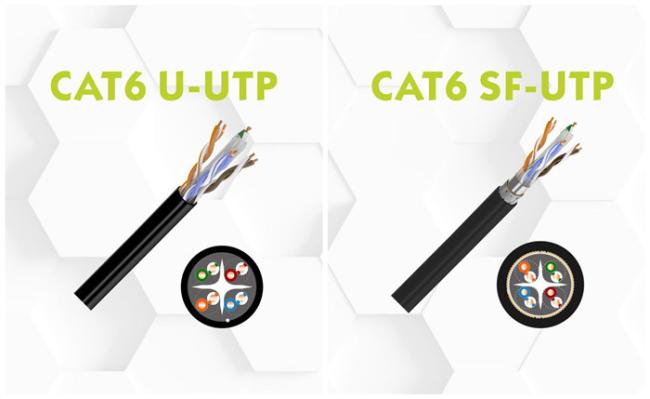

Product Structure
Conductor: High purity oxygen free copper wire (99.99%), with low resistance, fast speed, high transmission rate and so on.
Insulation material: High density polyethylene(HDPE), with signals attenuation decrease, fast speed, high transmission rate.
Jacket material: Imported poluvinyl chloride (PVC) material. with wear resistance, oil resistant, acid and long life and other characteristics.
Cross member: HDPE cross member to seperate the four pairs makes twisted pair more stable and degradation by the change of twisted distance.
Production Description:
Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor ,RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA- 568B&ISO/ IEC 11801
Application: Ethernet 10Base-T, 100Base,100Base-T4,1000Base- T,10GBase-T.
Application:
Twisted Cable for digital communication is used in building wiring systems in the workplace communications leads to terminal and handover distribution frame beteen the voice transmission wiring, as well as residential cabling user traffic leads to the terminal and handover distribution frame between the voice transmission system.
This prduct is widely applied to a variety of network cabling structure and transmission media, large-capacity and security, high privacy at local area network environment.

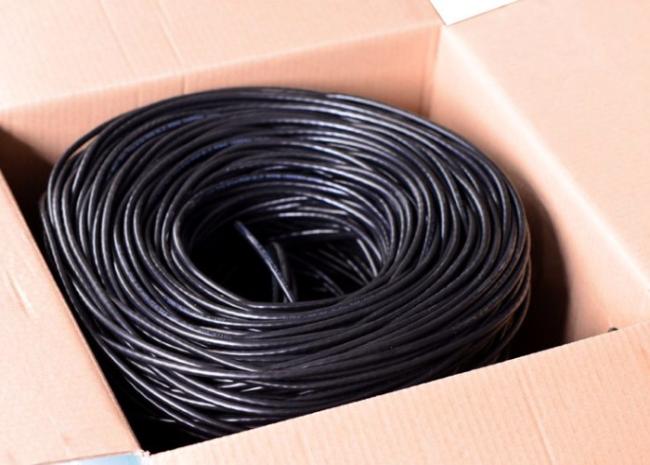

Networking Lan Cable 305M Easy Pull Box Packing
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
