CAT7 10Gbps Network Cable Fully Shielded Components 600MHz Bandwidth for Data Centres

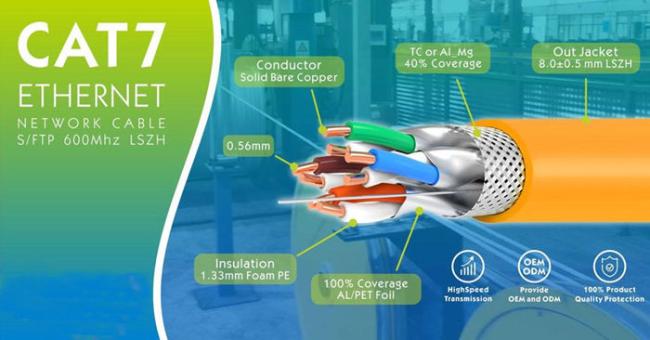

Product Structure

Conductor: Solid or stranded bare copper

Insulation material: PE Foam

Jacket material:PVC or LSZH

Production Description:

Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor ,RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA- 568B&ISO/ IEC 11801, yd/t1019-2001, ISO/IEC 11801, ANSI/ TIA/ EIA-568B.

Ethernet 10Base-T, 100Base,100Base-T4,1000Base- T.

The effective bandwidth of data layer is 10Gbit/s, the maximum transmission distance is 100 meters.

Cross isolation structure and the thicker jacket effectrively avoid the crosstalk between each pair of the cable. Double shield structure, make the cable have stronger anti-interference ability to the outside world and transmit the signal in strictest confidence.

Application:

Mainly used in the wiring system between work area correspondence leading-out terminal and distribution wiring frames connection. As well as used in the housing synithesis wiring system between user correspondence leading out terminal and patch panel.

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
